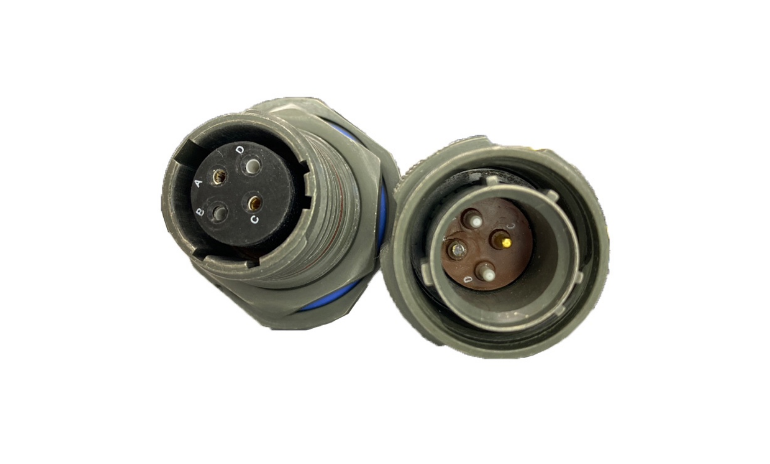

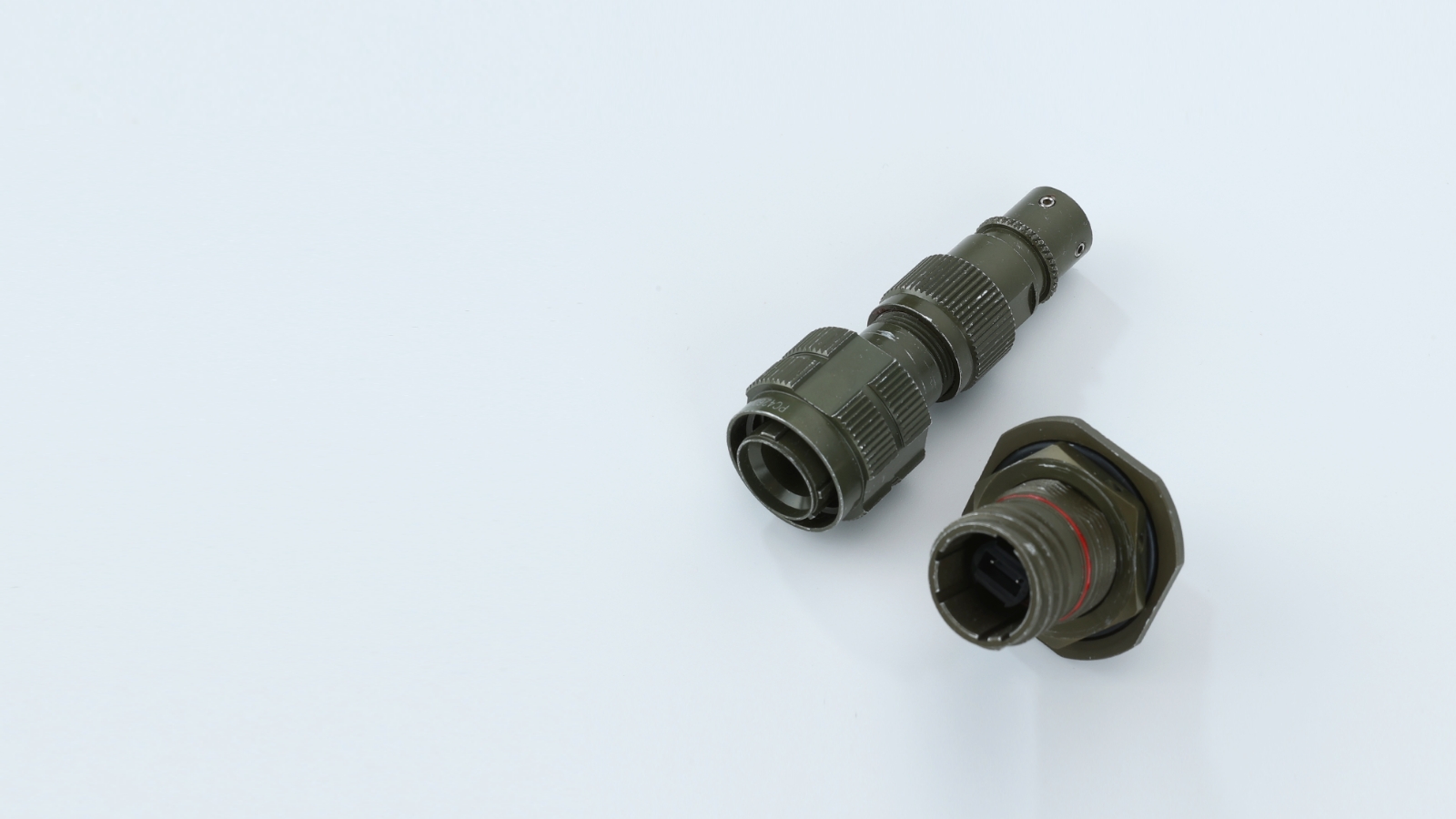

38999 Contact connector
38999 connector developed for the transmission of electrical and optical signals and is widely used in aerospace, military, marine, and industrial automation systems. FOSTEC's superior cable assembly manufacturing technology ensures more stable loss values and performance.
Contact Connectors38999 Contact
Military & Aerospace (MIL-DTL-38999)
- Product Information
- Specifications
- Order Information
-
Features
- Low insertion loss guaranteed by optical ferrule contact connection.
- High durability and waterproof/dustproof effect.
- Customized production possible according to customer requirements.
- Fast and rapid mating and high repeatability.
-
Application Area
- Defense Industry and Aerospace Industry
- Railroad, Plant
- Industrial
Preparing
Order Information (D38999 Series III)
| D38999 Series III | |
|---|---|
| D38999 20 | Shell Type (Specification Sheet Number)315 - 38999 Shell size 15 317R - 38999 Shell size 17 With Rubber cover |
| W | Class (Material & Finish)F = Aluminum shell, electroless nickel finish W = Aluminum shell, olive drab cadmium over electroless nickel base |
| C | Shell SizeA=9, B=11, C=13, D=15, E=17, F=19, G=21, H=23, J=25 |
| 35 | Insert Arrangement1~ N |
| P | Contact StyleP = Pin, S = Socket, A = Pin connector less pins (with intent to use non-std pin contacts) B = Socket connector less sockets (with intent to use non-std socket contacts) |
| N | Polarization (Keying)N = Normal (Included in part number), A, B, C, D, or E |
-
Read More

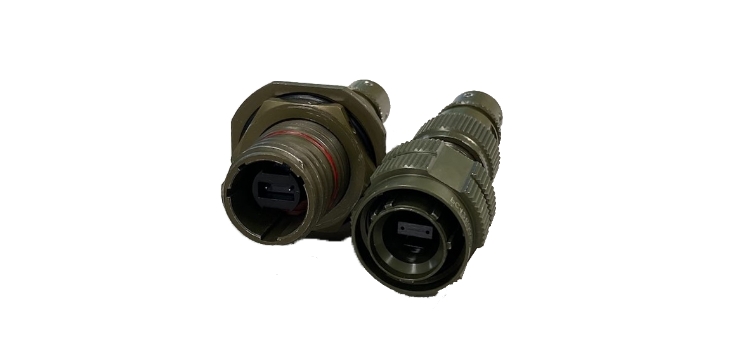

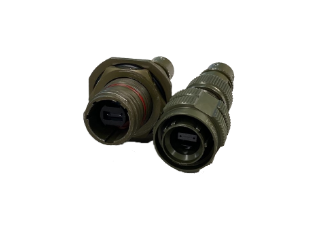

MT 38999
CloseMT 38999
It is a 38999 connector using MT ferrule, and multi-channel optical connection can be used with low insertion loss in harsh environments.
-
Read More

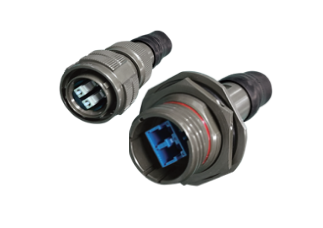

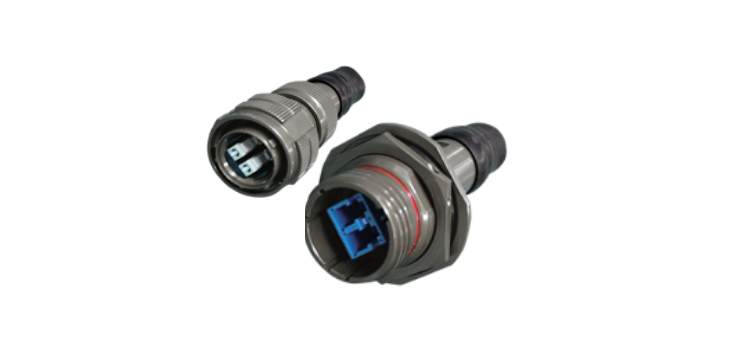

LC 38999
CloseLC 38999
The 38999 connector, which incorporates LC connector connection technology, is designed to protect LC connectors even in harsh environments. High optical performance and excellent environmental reliability are guaranteed.
