Cable Reel (AV-R)

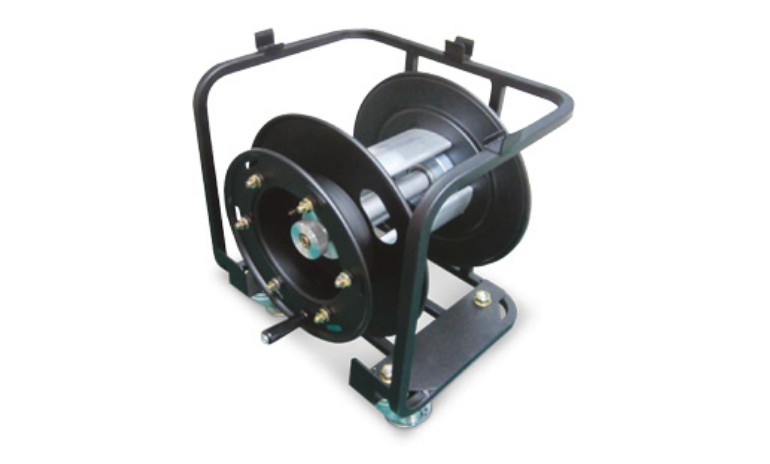

This is a broadcast cable reel, and it is easy to move using urethane wheels. It is easy to use space because the product can be loaded when necessary. It has a brake device when pulling out the cable to prevent the cable from getting tangled due to inertia.
BroadcastCable Reel (AV-R)
Cable Reel (AV-R)
- Product Information
- Specifications
- Order Information
-
Features
- Efficient cable management.
- Easy to move and install.
- Support for a variety of cables.
- Durability and reliability.
- Fast working process.
- Economics and ease of maintenance.
-
Application Area
- Broadcasting & Media
- Military & Defense
- Medical Equipment
- Industrial Automation
Specifications
| MODEL | Standard(W×D×H)㎜ | Windable Length by Cable Specification | Driving Method | |||
|---|---|---|---|---|---|---|
| External DiameterØ21 | External DiameterØ16 | External DiameterØ10 | External DiameterØ08 | |||
| AV45-R | 390×510×510 | 50m | 100m | 250m | 440m | Manual |
| AV38-R | 330×425×425 | 30m | 50m | 150m | 220m | Manual |
| AV30-R | 330×350×350 | 20m | 30m | 80m | 120m | Manual |
