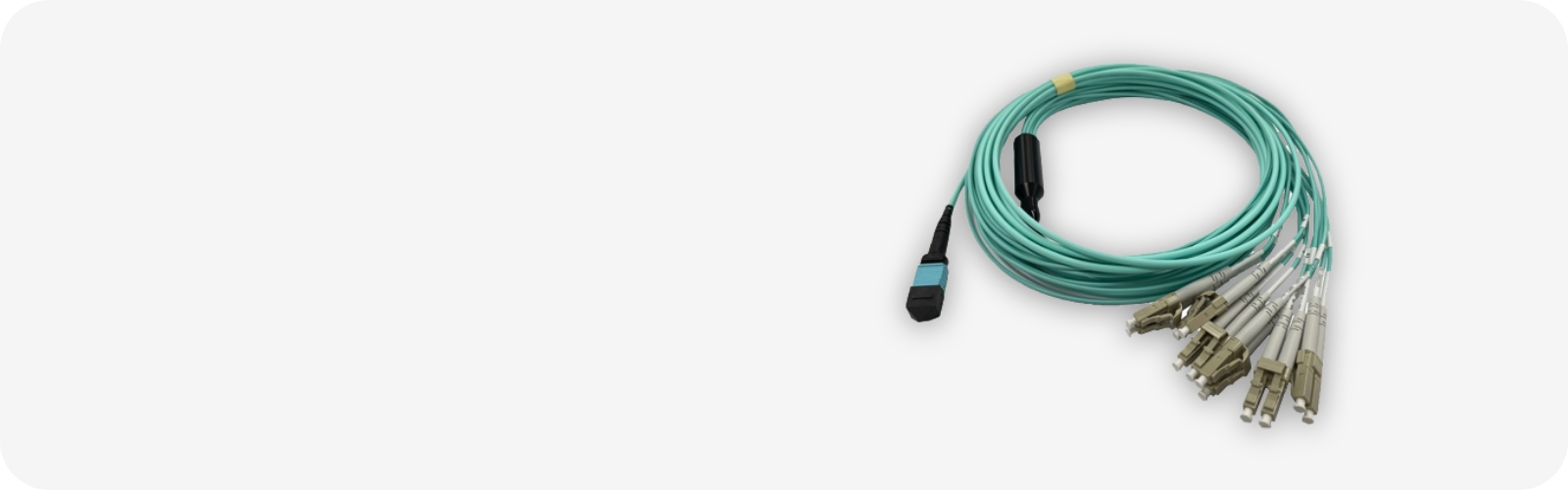

MPO/MTP patch code
MPO patch cord is a special optical patch cord designed for high-density optical fiber connections. It is a product that aggregates multiple optical fiber cores into a single connector using MPO/MTP connectors. It is widely used in data centers and high-speed network environments, and supports high-speed networks of 40G, 100G, and more.
Data Center SolutionsMPO/MTP patch code

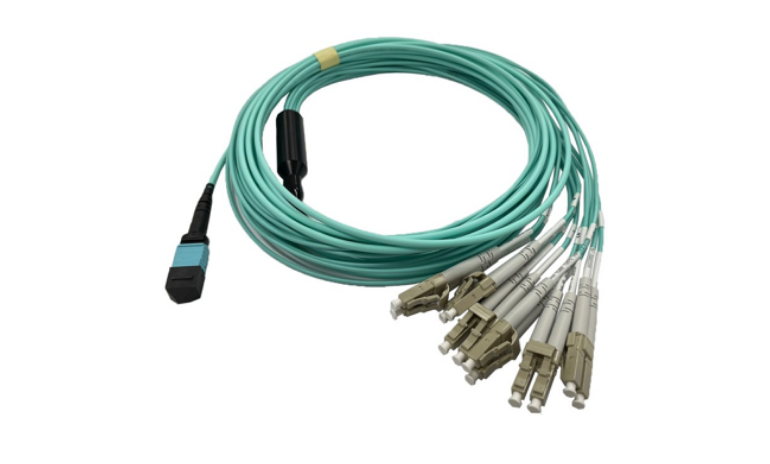

MPO/MTP Patch Cord
- Product Information
- Specifications
- Order Information
-
Features
- Compliant with IEC, JIS, TIC, etc. standards.
- Multi-channel high-density connection.
- Fast and stable high-speed data transmission.
- Fast and efficient installation.
- High reliability and durability guaranteed.
- Easy maintenance.
-
Application Area
- Large-scale data centers
- High-speed network and communications infrastructure
- Cloud computing environments
- Automation and industrial networks
Specifications
| Multi Mode | Single Mode | |||
|---|---|---|---|---|
| MM MT Elite Multi mode MT Ferrule | Standard Multi mode MT Ferrule | SM MT Elite Single mode MT Ferrule | Standard Single mode MT Ferrule | |
| Insertion Less | 0.10dB Typical 0.35dB Maximum |
0.20dB Typical 0.60dB Maximum |
0.10dB Typical 0.35dB Maximum |
0.25dB Typical 0.75dB Maximum |
| Optical Return Loss | >20dB | >20dB | >60dB(8˚Angle Polish) | >60dB(8˚Angle Polish) |
| Durability | <2.0dB typical change, 1000 matings | |||
| Repeatability | <2.0dB typical change | |||
| Tensile Strength | >10kg | |||
| Operating Tenperature | -40℃ to +85℃ | |||
Order Information
PTLC
Optical
Patch
Cord
Fiber Type
- 2=SM(G652D)
- 7=SM(G657A)
- A=MM(62.5/125)
- B=MM(50/125)
- C=OM3(50/125)
- D=OM4(50/125)
- P=PM
Fiber
Count
- 8=8C
- A=12C
- B=24C
- C=36C
- D=48C
Cable
Type
- X=Ribbon-Jacket
- Y=Bare Ribbon
- Z=Round
Connector
Type
Side A
- 1=MPO(Male)
- 2=APC(Female)
Polishing
Type
- 1=PC
- 2=APC
Housung
color
- 1=BLUE
- 2=Green
- 3=Gray
- H=Aqua
Connector
Type
Side B
- 1=MPO(Male)
- 2=MPO(Female)
- 3=LC
- 4=SC
Polishing
Type
- 1=PC
- 2=APC
Cable length
(m)
- 1=1m
- 2=2m
- -
- -
- 2A=2.1m
- 2B=2.2m
Fan out length
(m)
- 0A=0.1m
- 0B=0.2m
- 0C=0.3m
- -
- -
- -
- -
- 1=1m
- 2=2m
Polarity
- A=Polarity A
- B=Polarity B
- C=Polarity C
