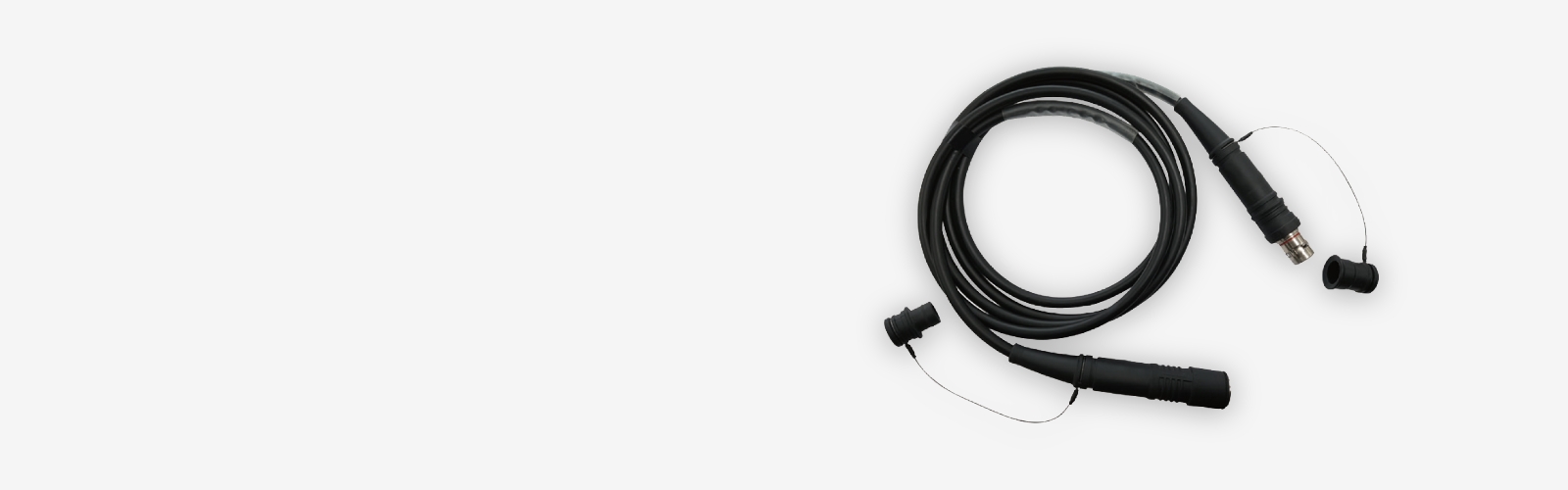

LEMO Optical Cable
This cable is for connecting HD cameras and CCUs for broadcasting, providing precise connection, stable transmission, and excellent durability.
BroadcastLEMO Optical Cable
LEMO Fiber Optic Cable
- Product Information
- Specifications
- Order Information
-
Features
- Rugged durability.
- High-precision connector design, low insertion loss and return loss.
- Flexibility and ease of installation.
- High reliability.
- Wide compatibility.
-
Application Area
- Broadcasting & Media
- Military & Defense
- Medical Equipment
- Industrial Automation
Specifications
| Parameter | Power | Signal | |
|---|---|---|---|
| Electrical Chatacteristics | Number of contacts | 2 | 2 |
| Contact type for plugs | male | female | |
| Conductor AWG min | 1.3mm | 0.9mm | |
| Conductor AWG max | 14mm | 20mm | |
| Operating voltage max | ≤600 V rms | ≤42 V rms | |
| Contact resistance | < 3.6mΩ | < 4.8mΩ | |
| Mating Reliability | Number of fibers | 2 | |
| Type of contact | F2 | ||
| Fiber type | SM | ||
| Insertion loss | 0.33 dB (1) | ||
| Return loss | > 45 dB (2) | ||
