Tactical Cable Reel

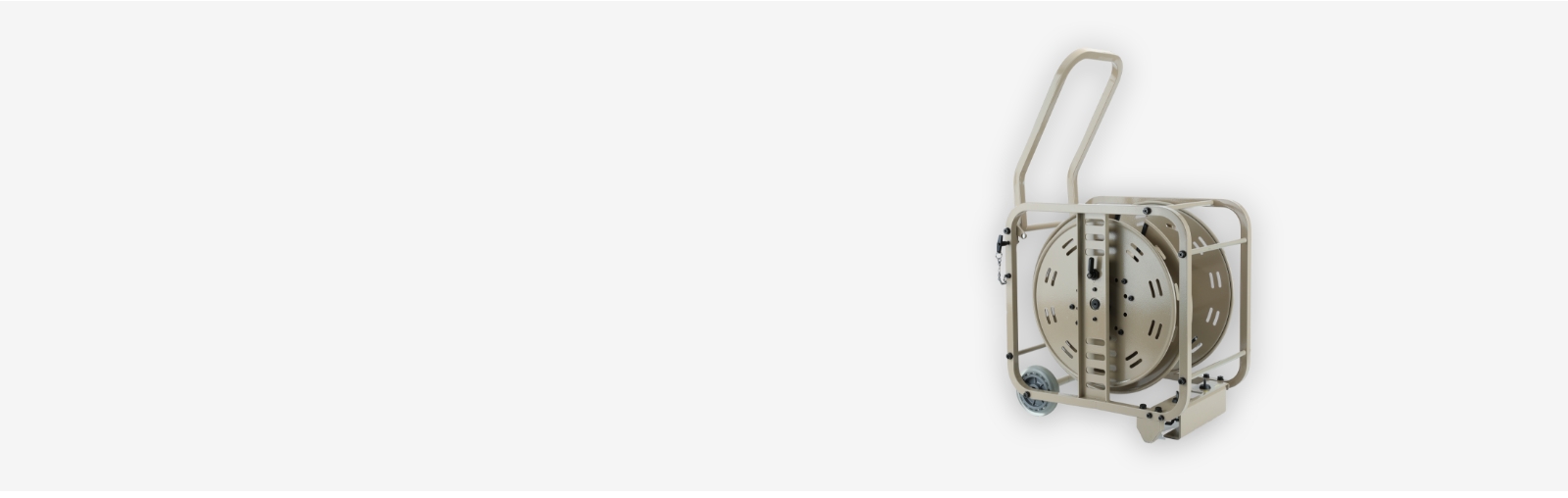

A sturdy frame made of aluminum or steel is equipped with wheels made of urethane or other materials for easy movement and easy storage space utilization as the product can be loaded if necessary. Additionally, automatic alignment winding and brake application can be added to prevent cable tangling.
Tactical Cable Reel
Tactical Cable Reel
- Product Information
- Specifications
- Order Information
- Related Products
-
Features
- Cart-type cable reel structure.
- Easy to move with urethane wheels.
- Excellent storage and space utilization with stackable options.
- Suitable for medium to long distances and repeated operation of heavy cables.
-
Application Area
- Defense Industry
- Outdoor performances, events, exhibitions, etc. Broadcasting Industry
- Building tactical communications networks
Specifications
| AV30-R | |||||||
|---|---|---|---|---|---|---|---|
| Code | AV30-R | ||||||
| Size(mm) | 330 x 350 x 350 | ||||||
| Material | Steel | ||||||
| Weight(kg) | 8.3 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 420 | 250 | 190 | 150 | 320 | 80 | 30 |
| AV38-R | |||||||
|---|---|---|---|---|---|---|---|
| Code | AV38-R | ||||||
| Size(mm) | 330 x 425 x 425 | ||||||
| Material | Steel | ||||||
| Weight(kg) | 9.6 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 1300 | 650 | 400 | 300 | 210 | 160 | 130 |
| AV45-R | |||||||
|---|---|---|---|---|---|---|---|
| Code | AV45-R | ||||||
| Size(mm) | 390 x 510 x 510 | ||||||
| Material | Steel | ||||||
| Weight(kg) | 10.5 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 1500 | 990 | 700 | 520 | 440 | 250 | 100 |
| AV50-R | |||||||
|---|---|---|---|---|---|---|---|
| Code | AV50-R | ||||||
| Size(mm) | 420 x 550 x 575 | ||||||
| Material | Steel | ||||||
| Weight(kg) | 14.2 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 1800 | 1220 | 850 | 600 | 500 | 300 | 120 |
| MOFC-R(MD) | |||||||
|---|---|---|---|---|---|---|---|
| Code | MOFC-R(MD) | ||||||
| Size(mm) | 500 x 487 x 835 | ||||||
| Material | Steel & Aluminum | ||||||
| Weight(kg) | 17 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 16.0 | 21.0 |
| Capacity(M) | 1800 | 1148 | 795 | 444 | 316 | 118 | 66 |
Preparing
-
Read More
MOFC-R
CloseMOFC-R

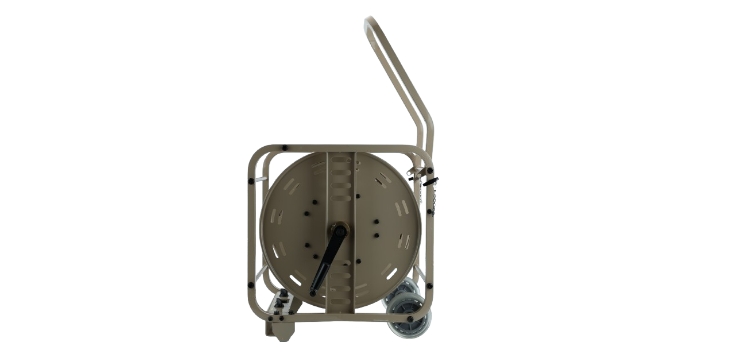

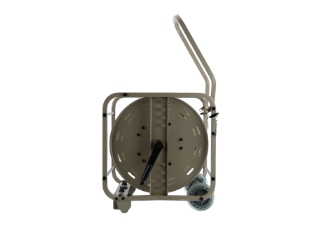

MOFC-R is a cable reel with urethane wheels applied to a steel frame, and automatically aligns and applies winding to minimize the number of winding operations and shorten the time by rapid repetitive operation, and can be used in various environments through tactical movement and vehicle mounting/fixing.
-
Read More
AV-R
CloseAV-R

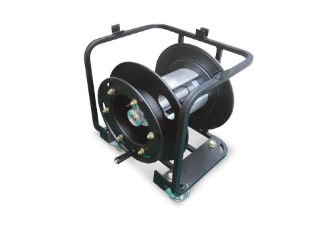

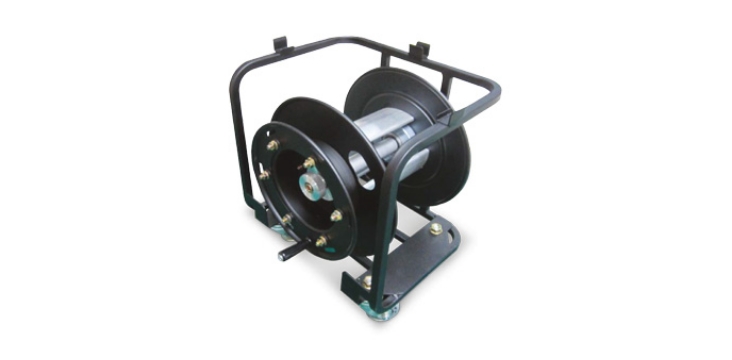

AV-R series are mainly used as a cable for broadcasting, and it is convenient to move using urethane wheels, and it is easy to use space because it can load products if necessary. There is a brake system when pulling out cables, so there is a function to prevent cable entanglement
