- Cable Reel
- Portable Cable Reel

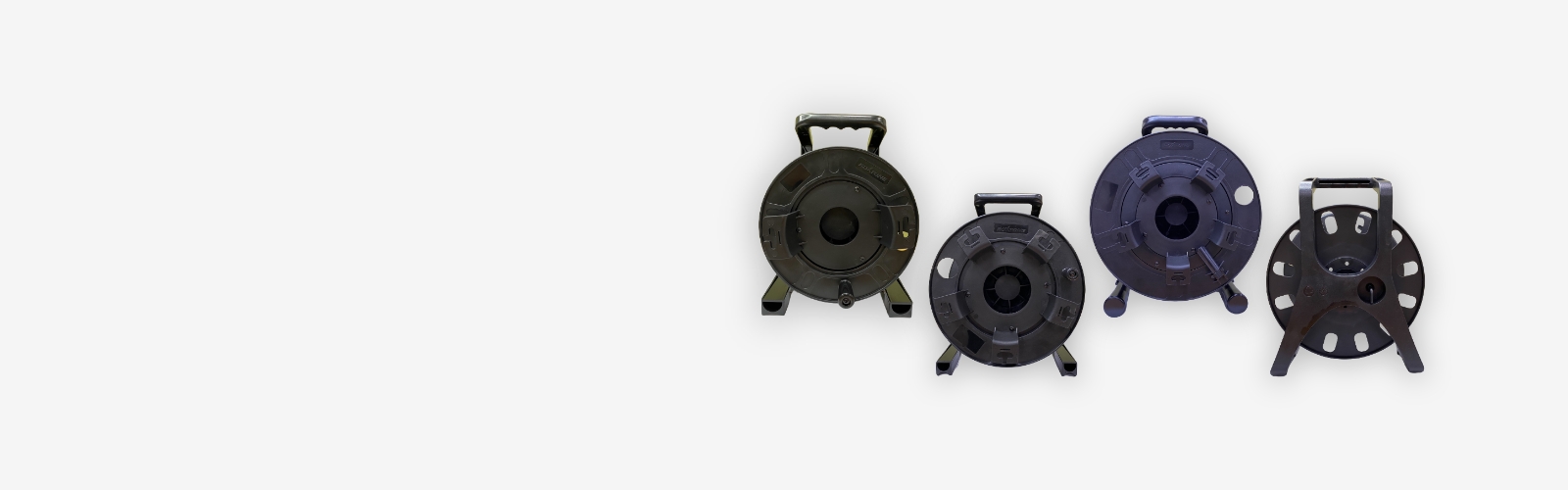

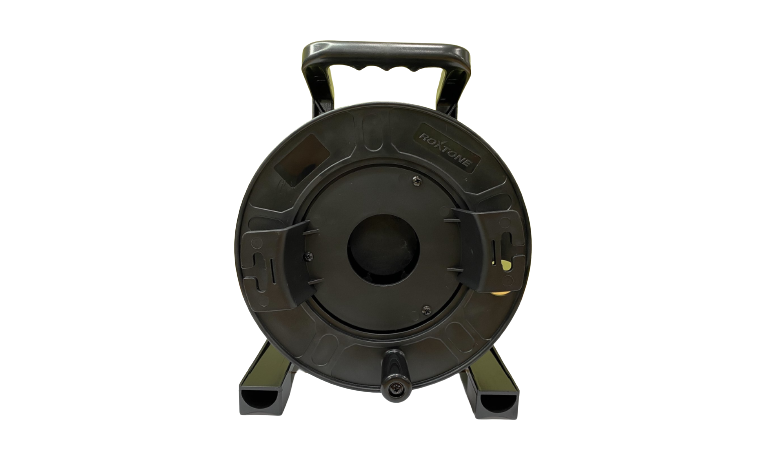

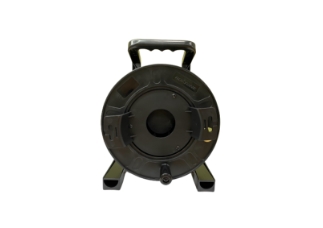

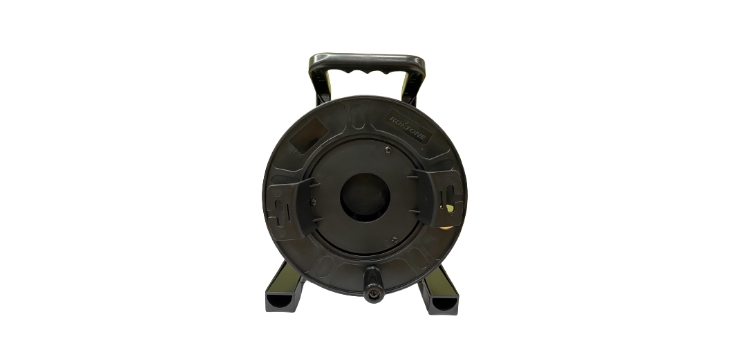

Portable Cable Reel
A lightweight cable reel with a handle for easy transportation, mainly used for short-distance network and for storage and winding of short-distance cables.
Portable Cable Reel
Portable Cable Reel
- Product Information
- Specifications
- Order Information
- Related Products
-
Features
- Portable, hand-held cable reel.
- Reinforced plastic and metal options.
- Suitable for short-distance, repetitive operations.
-
Application Area
- Defense Industry.
- Outdoor performances, events, exhibitions, etc. Broadcasting Industry.
- Building tactical communications networks.
Specifications
| MOFC-R-P235 | |||||||
|---|---|---|---|---|---|---|---|
| Code | MOFC-R-P235 | ||||||
| Size(mm) | 235 x 210 x 315 | ||||||
| Material | Reinforced Plastic | ||||||
| Weight(kg) | 1.7 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 160 | 100 | 70 | 55 | 40 | 25 | N/A |
| MOFC-R-P310 | |||||||
|---|---|---|---|---|---|---|---|
| Code | MOFC-R-P310 | ||||||
| Size(mm) | 315 x 240 x 395 | ||||||
| Material | Reinforced Plastic | ||||||
| Weight(kg) | 2.0 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 320 | 200 | 140 | 110 | 80 | 55 | 20 |
| MOFC-R-P380 | |||||||
|---|---|---|---|---|---|---|---|
| Code | MOFC-R-P380 | ||||||
| Size(mm) | 380 x 345 x 490 | ||||||
| Material | Reinforced Plastic | ||||||
| Weight(kg) | 5.0 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 650 | 400 | 300 | 210 | 160 | 100 | 40 |
| STS-02A | |||||||
|---|---|---|---|---|---|---|---|
| Code | STS-02A | ||||||
| Size(mm) | 300 x 225 x 400 | ||||||
| Material | Reinforced Plastic | ||||||
| Weight(kg) | 1.6 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 360 | 230 | 160 | 120 | 90 | 60 | 20 |
Preparing
-
Read More
MOFC-R-C
CloseMOFC-R-C
MOFC-R-C is a portable cable using a solid steel frame enables tactical movement, vehicle mounting/fixing, and rapid repetitive operation.
-
Read More
Reinforced Plastic Cable Reels
CloseReinforced Plastic Cable Reels
It is a lightweight but sturdy cable reel that can be used in a field environment using reinforced plastic, which is easy to carry and offers solutions tailored to customer specifications in various sizes depending on the cable length.
