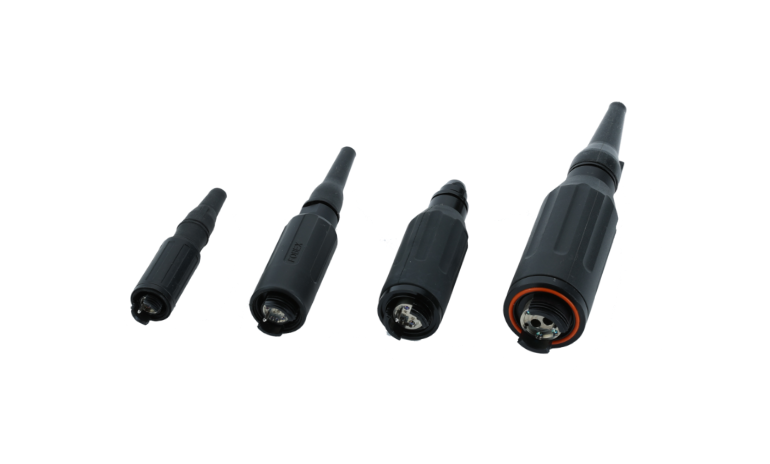

FOBEX 83526
Ensures stable and reliable data transmission in extreme environments. Designed with a hermaphrodite type for easy connection and disconnection over 3,000 times, the extended beam technology minimizes loss caused by dust or contaminants from outdoors.
- Product Information
- Specifications
- Order Information
-
Features
- Excellent repeatability of hermaphroditic type.
- Various shell sizes and channel options Mini(2~4ch), Junior(2~8ch), Senior(2~12ch), Maxi(2~24ch)
- Stable optical signal transmission with non-contact beam expansion method.
- Excellent environmental resistance and resistance to various external shocks and vibrations.
- Easy maintenance.
- Production of photoelectric hybrid products tailored to customer requirements.
-
Application Area
- Naval ship combat system, unmanned surface ships, guided weapon systems.
- Mobile military tactical shells, armored vehicle optical networks.
- Tactical weapon systems.
- Infrastructure installation in harsh environments C4I systems.
- Various industrial applications such as plants, energy, and the environment.
Specifications
| MIL-DTL-83526 Expanded Beam Connector | |
|---|---|
| Insertion Loss | Single Mode(SM) : 1 to 4 ch : 1.0 - 1.5dB / 6 to 12 ch : 1.0- 2.0dB / 16 to 24 ch : 1.0- 2.5dB |
| Multimode(MM) : 1 to 4 ch : -1.0dB / 5 to 6 ch : -1.5dB / 7 to 8ch : -1.5dB, 13ch or more : -1.5dB | |
| Reflective Loss | Single Mode(SM) > 34dB(typical 40dB) |
| Bond Durability | Combine 3000 iterations |
| Operating Temperature | -40°C to +85°C |
| Flooding | 24 hours 15m (after plug & receptacle combination) |
| IP Rating | IP67 |
| Free Fall | 500 drop shocks at 1.2m height |
| Vibration | 20-500Hz, 3-axis, 0.75mm amplitude, 10g acceleration |
| Shock | 4000 times, 40g acceleration |
| Corrosion Resistance | 500 hours of saline spray |
Order Information (D83526)
FOBEX EB-A-B-C-D-E-F-G-H
| D83526 Expanded Beam Connector | ||||||
|---|---|---|---|---|---|---|
| ACONNECTOR SIZE | S - Senior | |||||
| J - Junior | ||||||
| M- Mini | ||||||
| MX- Maxi | ||||||
| BCONNECTOR TYPE | P - Plug | |||||
| BD BULKHEAD D HOLE | ||||||
| BS BULKHEAD SQUARE FLANGE | ||||||
| P90 PLUG 90˚ ANGLED | ||||||
| BD90 BULKHEAD D HOLE 90 ˚ ANGLED | ||||||
| BS90 BULKHEAD SQUARE FLANGE 90˚ ANGLED | ||||||
| CMETERIAL / SHELL FINISH | A - Aluminum Black Anodise | |||||
| S - Stainless Steel | ||||||
| DNUMBER OF FIBERS | 1 - 1 Optical Channel | |||||
| 2 - 2 Optical Channels | ||||||
| 4 - 4 Optical Channels | ||||||
| 8 - 8 Optical Channels | ||||||
| 12 - 12 Optical Channels | ||||||
| 16 - 16 Optical Channels | ||||||
| 24 - 24 Optical Channels | ||||||
| ENUMBER OF ELECTRICAL | 0 - No electrical contacts | |||||
| 1 - 1 Electical contacts | ||||||
| 2 - 2 Electical contacts | ||||||
| 4 - 4 Electical contacts | ||||||
| FFIBER TYPE | 09 - Single mode (9/125) | |||||
| 52 - Multi mode (50/125) - OM2 | ||||||
| 53 - Multi mode (50/125) - OM3 | ||||||
| 54 - Multi mode (50/125) - OM4 | ||||||
| 62 - Multi mode (62.5/125) - OM1 | ||||||
| G적용 파장 | A - 850 / 1300nm | |||||
| B - 1310 / 1550nm | ||||||
| C - 1310nm Only | ||||||
| D - 1550nm Only | ||||||
| HCABLE DIAMETER | Ø4.6: 4.6MM | Ø5.5: 5.5MM | Ø9.2: 9.2MM | |||
-
Read More
Window
CloseWindow
Additional reinforced glass is placed on the front of the connector to protect the front of the lens and insert from external contamination, and it is easy to clean and maintain the product. Easy cleaning of contaminants in liquids makes it suitable for use in the oil and gas fland industry and in harsh environments.
-
Read More
Hybrid(Optical + Electrical)
CloseHybrid(Optical + Electrical)
It is a hybrid connector that can use light signal and electric power at the same time, so it can be installed space-efficiently because it does not separate connector, and is advantageous for maintenance and cost reduction.
-
Read More
LC Adapter Type
CloseLC Adapter Type
It is a product in which the beam connector and the LC adapter are pre-connected, and can be used by directly connecting the patch cord to the LC adapter at the back of the product.
-
Read More
90' Degree Adapter
Close90' Degree Adapter
This adapter can be connected to the back of the 83526 expanded beam connector to prevent loss due to cable bending and disconnection, and can be installed in narrow spaces. It is also designed to be installed according to customer requirements as the position can be changed at 45-degree angle.
