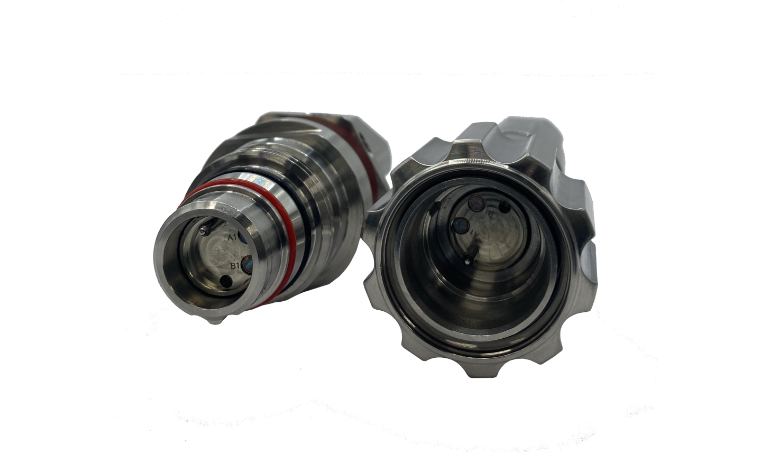

SEAFOC(FOSTEC SUBSEA CONNECTOR)
Special-purpose connectors designed for fiber-based data transmission in underwater environments, used in a variety of marine-related applications, including ocean exploration, military operations, subsea communications, and connecting offshore structures. These connectors are designed to withstand harsh conditions such as pressure, moisture, salt, and physical stress underwater.
- Product Information
- Specifications
- Order Information
-
Features
- Excellent waterproof performance with double sealing structure.
- Beam expansion application technology application.
- Can be applied to deep-sea environments.
-
Application Area
- ROV (Remotely Operated Vehicle)
- Underwater Optical Communication
- Renewable Energy
- Underwater Drone
Specifications
| SEAFOC | ||
|---|---|---|
| PARAMETER | Multimode(@850/1310nm) | Single Mode(@1310/1550nm) |
| Insertion Loss | 4ch Typical 1.0dB, Max 2.5dB | 4ch Typical 1.5dB, Max 2.5dB |
| Reflective Loss | >28dB(Typical 30dB) | |
| Operating Temperature | -20℃ to +50℃ | |
| Storage Temperature | -40℃ to +70℃ | |
| Repeated Engagement | 1,000 Cycles | |
| Waterproofing & Application Depth | IP69K, 8,000m, 800bar pressure (to be determined later) | |
Order Information (SEAFOC)
SEAFOC-A-B-C-D-E-F-G-H
| SEAFOC | ||
|---|---|---|
| ACONNECTOR TYPE A | PC - PLUG | |
| BD - RECEPTACLE TYPE | ||
| BMETERIAL / SHELL FINISH | S - STAINLESS STEEL(STS316) | |
| CNUMBER OF FIBERS | 1 - 1 OPTICAL CHANNEL | |
| 2 - 2 OPTICAL CHANNEL | ||
| 3 - 3 OPTICAL CHANNEL | ||
| 4 - 4 OPTICAL CHANNEL | ||
| DCABLE DIAMETER | 46 - 4.6MM | |
| 55 - 5.5MM | ||
| 92 - 9.2MM | ||
| EFIBER TYPE | 09 - SINGLE MODE(9/125) | |
| 52 - MULTI MODE(50/125) - OM2 | ||
| 53 - MULTI MODE(50/125) - OM3 | ||
| 54 - MULTI MODE(50/125) - OM4 | ||
| 62 - MULTI MODE(62.5/125) - OM1 | ||
| FWAVELENGTH | A - 850/1300nm | |
| B - 1310/1550nm | ||
| C - 850nm ONLY | ||
| D - 1300nm ONLY | ||
| E - 1310nm ONLY | ||
| F - 1550nm ONLY | ||
| GCONNECTOR TYPE B | A - SAME AS END A | |
| SC - SC TYPE CONNECTOR | ||
| LC - LC TYPE CONNECTOR | ||
| ST - ST TYPE CONNECTOR | ||
| FC - FC TYPE CONNECTOR | ||
| HCABLE LENGTH | 0.5 - 0.5M | |
| 1 - 1M | ||
| 10 - 10M | ||
| 100 - 100M | ||
