Fiber optic terminus(MIL-PRF-29504)
The MIL-PRF-29504/4 and MIL-PRF-29504/5 termini are high-performance fiber optic termini designed for use in military and aerospace applications. They are part of the MIL-PRF-29504 standard, which defines precision fiber optic termini that are used in MIL-DTL-38999 connectors and other military-grade fiber optic connector systems.
Fiber optic terminusMIL-PRF-29504

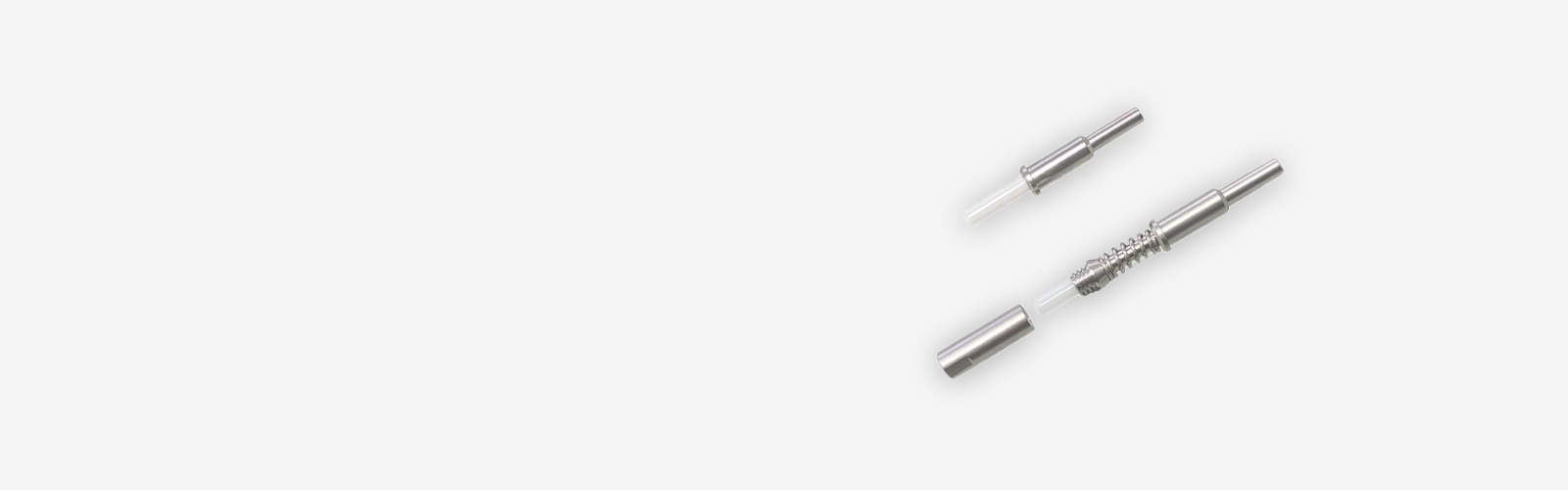

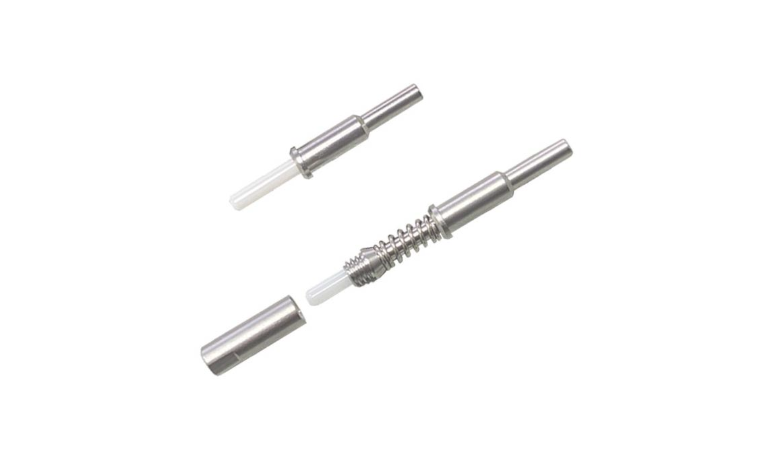

FOSTEC MIL Pin & Socket (Contacted type)
- Product Information
- Specifications
- Order Information
-
Features
- Excellent optical performance guaranteed by precision tolerance management
- Applicable to 38999 contact connectors
-
Application Area
- Defense Industry
- Optical Communication Networks
Specifications
Pin Terminus(M29504/4)
| Part number | Fiber core/Cladding | A Dia (mm) | Reference | |
|---|---|---|---|---|
| F1000-513SMPI | -S55 | 9/125(Single Mode) | 125.5 | M29504/4-4208 |
| -S60 | 126.0 | M29504/4-4209 | ||
| -M60 | 50/125(Multi Mode) | 126.0 | M29504/4-4210 | |
| -M70 | 62.5/125(Multi mode) | 127.0 | M29504/4-4040 | |
Socket Terminus(M29504/5)
| Part number | Fiber core/Cladding | A Dia (mm) | Reference | |
|---|---|---|---|---|
| F1000-513MSO | -S55 | 9/125(Single Mode) | 125.5 | M29504/5-4237 |
| -S60 | 126.0 | M29504/5-4238 | ||
| -M60 | 50/125(Multi Mode) | 126.0 | M29504/5-4239 | |
| -M70 | 62.5/125(Multi mode) | 127.0 | M29504/5-4046 | |
