Contact light inspection set (MOFC-M)
Fiber optic inspection scope is a specialized tool used to inspect and analyze the end faces of fiber optic connectors. It helps ensure that the fiber end faces are clean, free of dust, dirt, scratches, or other contaminants that could degrade signal transmission. FOSTEC provide inspection scope with cleaners to maintain fiber end cleanliness easily.
- Product Information
- Components
- Order Information
-
Features
- Optical cross-section, inspection and cross-section cleaning kit.
- Easy to check cross-section contamination status with high-magnification scope.
- Easy to maintain with rapid contamination removal.
-
Application Area
- Defense Industry
- Optical Communication Networks

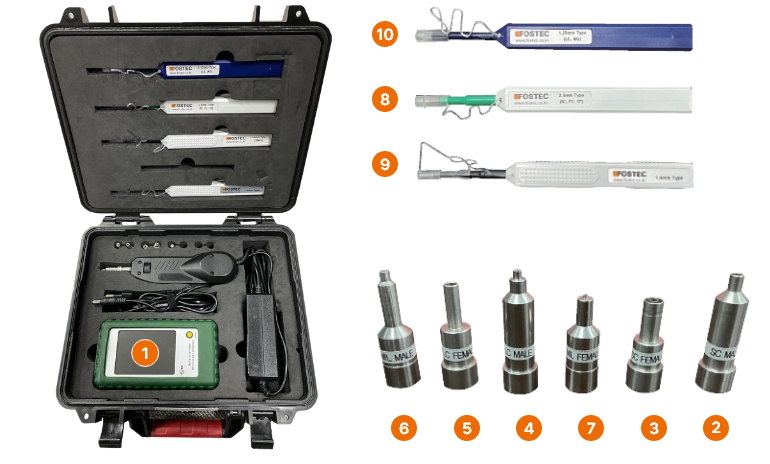

Components
| MOFC-M | |
|---|---|
| Components Name | Number |
| Microscope | 1EQISTQPB |
| Microscope-SC-M | 1EQISTQTSCMA |
| Microscope-SC-F | 1EQISTQTSCFE |
| Microscope-LC-M | 1EQISTQTLCMA |
| Microscope-LC-F | 1EQISTQTLCFE |
| Microscope-Mil-M | FS-T00090 |
| Microscope-Mil-F | FS-T00078 |
| LC Cleaner / 1.25mm | 1TL01PE-12-001 |
| SC Cleaner / 2.5mm | 1TL01PE-25-001 |
| MIL Cleaner / 1.6mm | 1TL01PE-MP-0001 |
