ODC
A high-performance connector that provides fiber optic connections in harsh environments, it is mainly used for communication infrastructure, military, marine, and industrial applications. In particular, it is durable and is designed to be used in harsh environments.
Contact ConnectorsODC

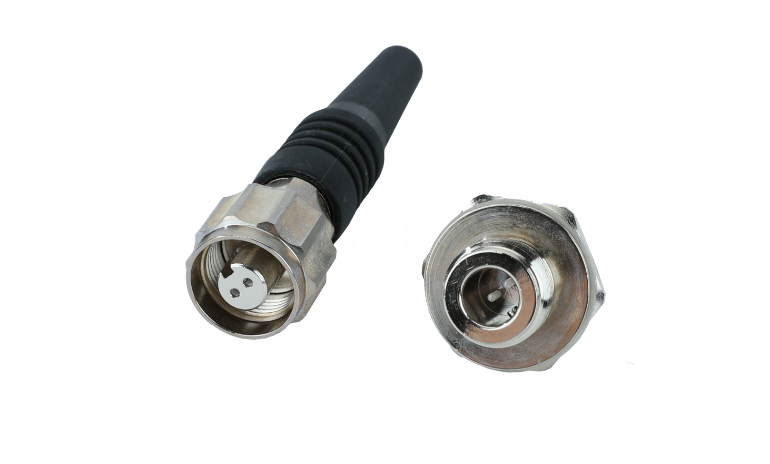

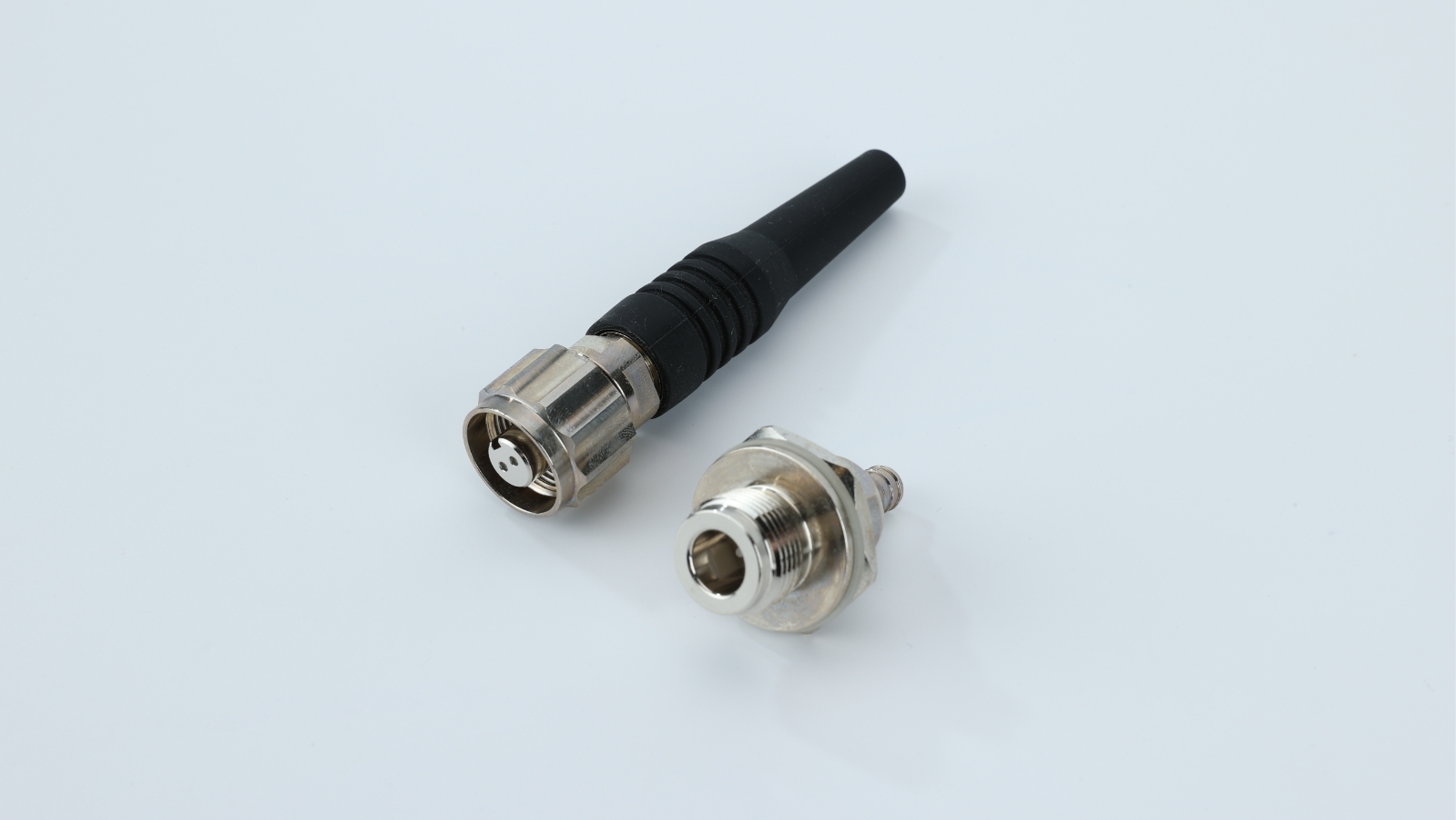

ODC connextor PLUG/SOCKET and ODC cable assembly
- Product Information
- Specifications
- Order Information
-
Features
- Optical connector for field environments.
- 2-channel and 4-channel options available.
- High-strength connection with screw-type coupling.
- Low insertion loss and high environmental reliability.
-
Application Area
- Defense Industry
- Optical Communication Networks
Specifications
| ODC | ||
|---|---|---|
| Optics | Insertion Loss : SM 0.5dB | Insertion Loss : MM 0.4dB |
| Reflective Loss : ≥50dB | ||
| Machine | Temperature Environment : -40℃ ~ +85℃ | |
| Waterproof Characteristics : IP67 or IP68 | ||
