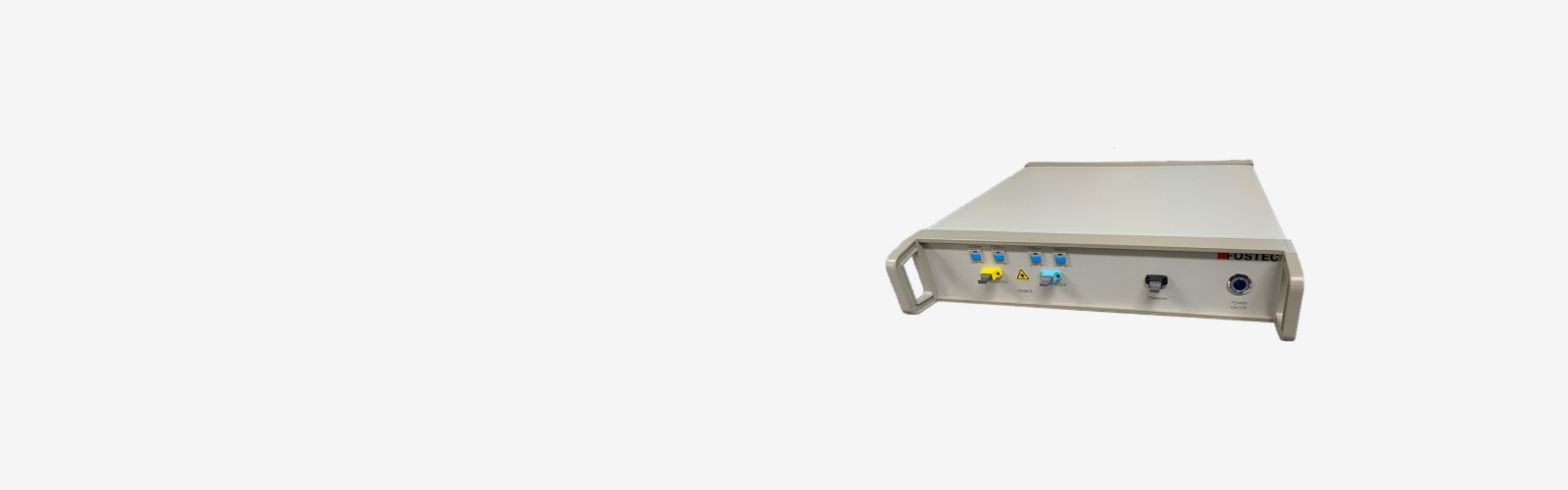

MPO/MTP Measuring instrument

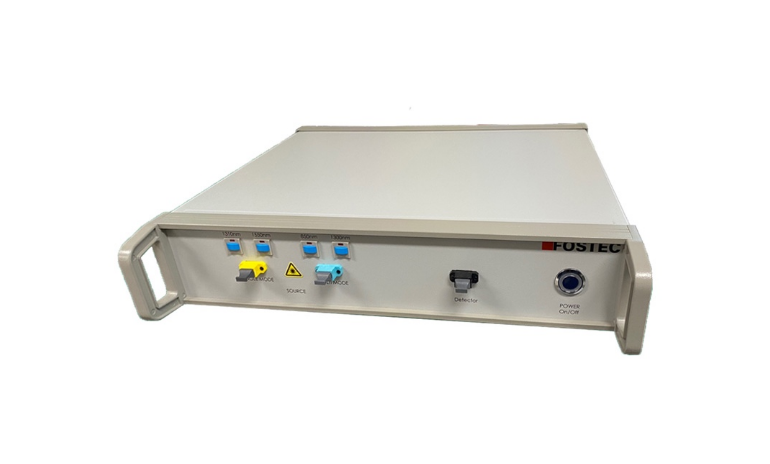

This equipment measures the characteristics of multi-channel optical loss values and other characteristics of MPO/MTP optical patch cords at once. It combines a light source and an optical power meter, making it space-efficient and convenient to use.
Optical Access&MaintenanceMPO/MTP Measuring instrument
MPO/MTP
- Product Information
- Specifications
- Order Information
-
Features
- FMMS-012 is an insertion loss test system for optical modules
- Fast measurement time (MPO connector, 12ch less than 2 seconds)
- SM, MM test possible (1550nm, 1310nm, 1300nm, 850nm)
- Simple software for users
- New time data monitoring
- Automatic test and data storage
-
Application Area
- Multi-fiber connectors (MPO/MTP)
- Optical modules (AWG, VOA, Splitter, Fiber array)
- Optical systems
- Single fiber connectors (FC,SC,LC)
Specifications
| Operating wavelength | 1500nm, 1310nm, 1300nm, 850nm |
|---|---|
| Fiber Type | 9/125um SM Fiber (1550/1310nm) 50/125MM Fiber (1300/850nm) |
| Optical Connector Type | MPO/MTP |
| Typical Output Power(dBm) | -7@1550nm, 1310nm, -22dBm for LED |
| Detector Type | InGaAs |
| Measure Mode | GUI |
| Resolution(dB) | 0.1 |
| Calibrated Wavelength(nm) | 850, 1300, 1310, 1550 |
| Power Supply | AC 220V |
| Operating Temperature | -10~+60 |
| Storage Temperature | -25~+70 |
| Dimenssion | 435x88.1x360 |
| Weight | 285 |
