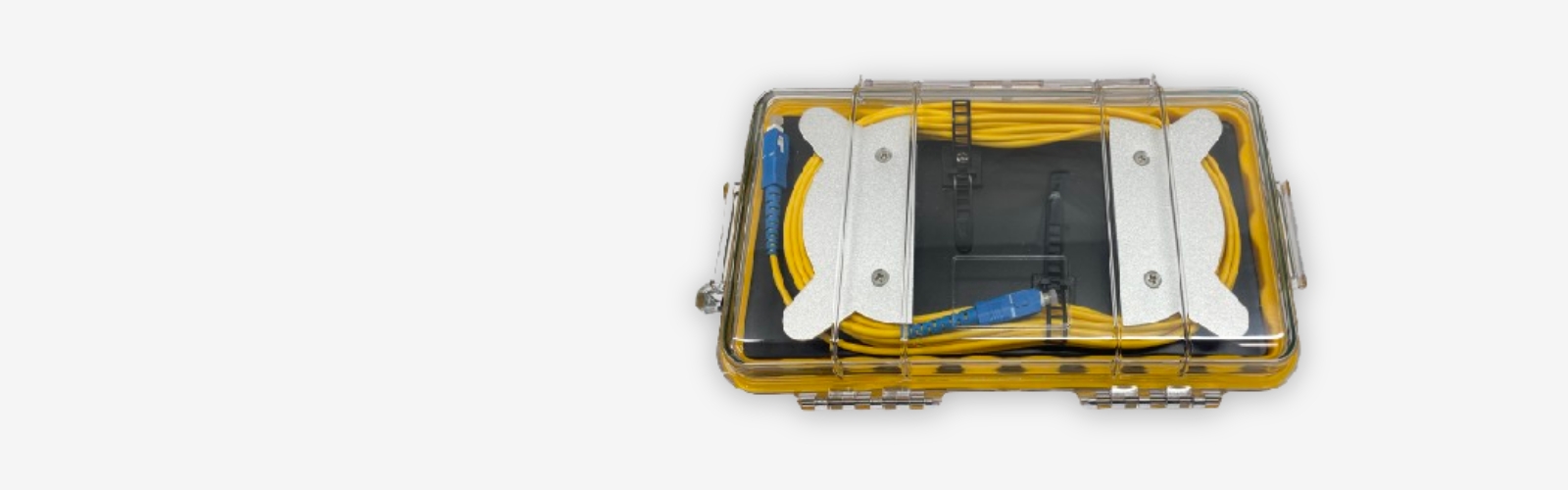

LAUNCH BOX (Dummy Fiber)
This is an optical cable that is connected as a dummy cable to eliminate shadow sections when measuring short sections for equipment testing or OTDR measurement in the construction of long-distance optical circuits.
Optical Network&EquipmentLAUNCH BOX
Dummy Fiber
- Product Information
- Specifications
- Order Information
-
Features
- Ensure signal stability.
- Guaranteed test loss.
- Compact and lightweight design.
- Efficient cable management.
-
Application Area
- Equipment testing, optical line installation/maintenance, training, calibration
- Hard case for external shock protection and water resistance
- Supports up to 2,000m
Specifications
| Parameter | |
|---|---|
| Dimensions | 19.5cm(L)x8cm(W)x3.5cm(H) |
| Fiber Length (m) | 100 up to 2000 (max) |
| Fiber Types | Singlemode 9/125, Multimode 62.5/125, Multimode 50/125 OM2, Multimode 50/125 OM3 |
| Lead Length | 1.5 Meters, 3mm buffer |
| Insertion Loss | <0.3 dB/km typical, <0.5 dB/km max |
| Back Reflection (RL) | UPC: <-50 dB, APC: <-60 dB |
| Mating Reliability | <.2 dB |
| Mating Reliability | All connectors meet or exceed Telcordia GR-326 Core. Specification Apex Offset : 0-50um Radius of Curvature : 7-25 nm Fiber Height : -50 to 50 mm Fiber Roughness : 0-25 nm Ferrule Roughness : 0-50 nm |
| Storage Temp | -40℃ to +85℃ |
| Operating Temp | -40℃ to +85℃ |
| Humidity | 0 to 95%, non-condensing |
| Weight | 5 oz. |
| Warranty | 1 year |
