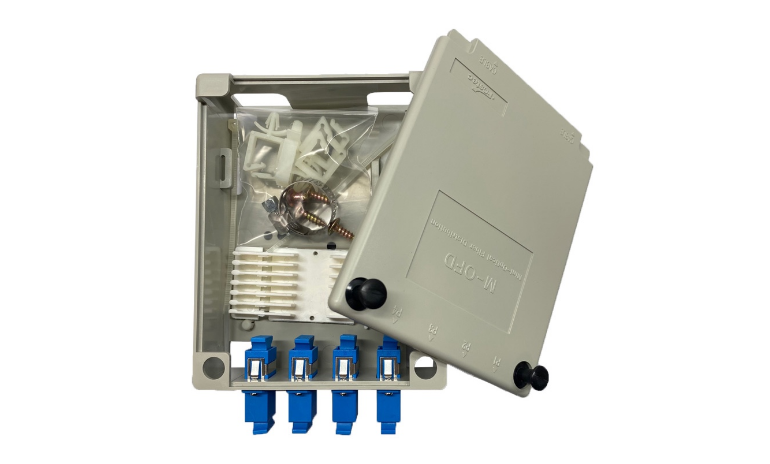

Optical distribution box (MINI)
Mini type optical distribution box, with options of iron or ABS (plastic) specifications. Mainly used for distribution of small number of optical fibers such as 4, 8, 12 cores.
Optical Network&EquipmentMINI

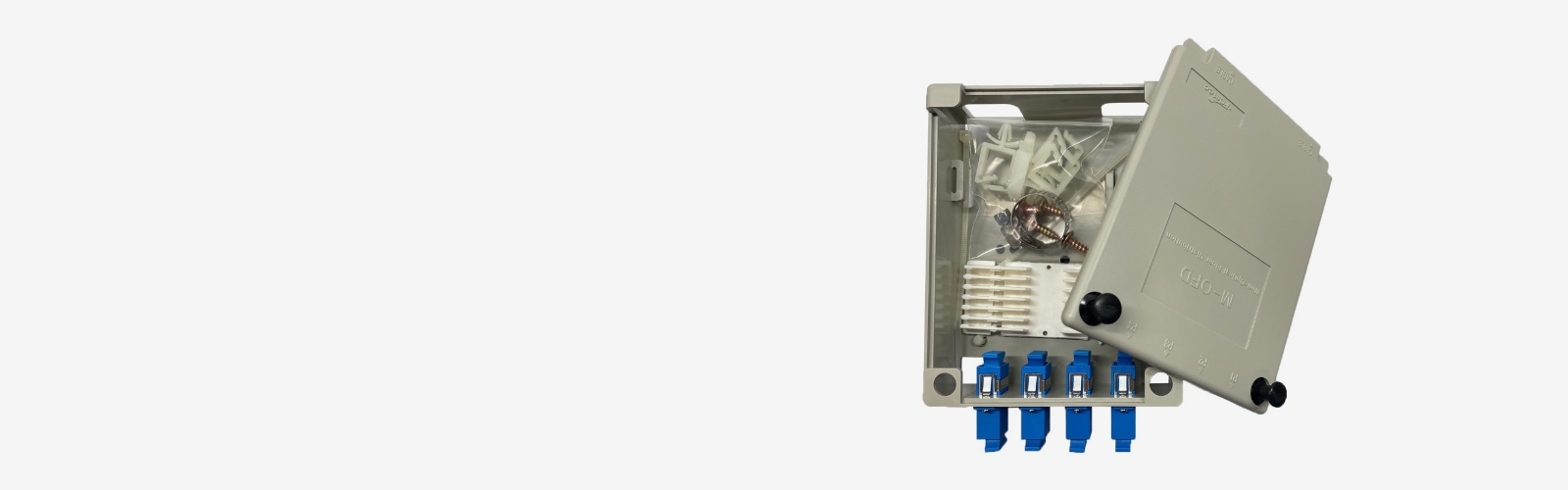

Optical Fiber Distribution (mini)
- Product Information
- Specifications
- Order Information
-
Features
- Efficient use of space with compact design.
- Light weight, easy to transport and install.
-
Application Area
- Telecommunications network
- Local area network (LAN)
- Data system network
- CATV telecommunications network
Specifications
| Parameter | Unit | MOFD | MODP | |||
|---|---|---|---|---|---|---|
| Fiber Capacity | Core | 4 | 8 | 4.8 | 12 | |
| Dimension | Height | mm | 38 | 40 | 30 | 35 |
| Width | mm | 95 | 145 | 110 | 140 | |
| Depth | mm | 120 | 175 | 135 | 190 | |
| Material | ABS | ABS | Steel | Steel | ||
Order Information
M
Mini
Optical Fiber Distribution
Type
- OFD
- ODP
- BOX-2
- BOX-4
- BOX-DP
Core
- 1~12
Adapter Type
- SC, FC, ST, LC
- Other
Sleeve Type
- Zr : Zirconia Ceramic
- FB : Phosphorous Bronze
