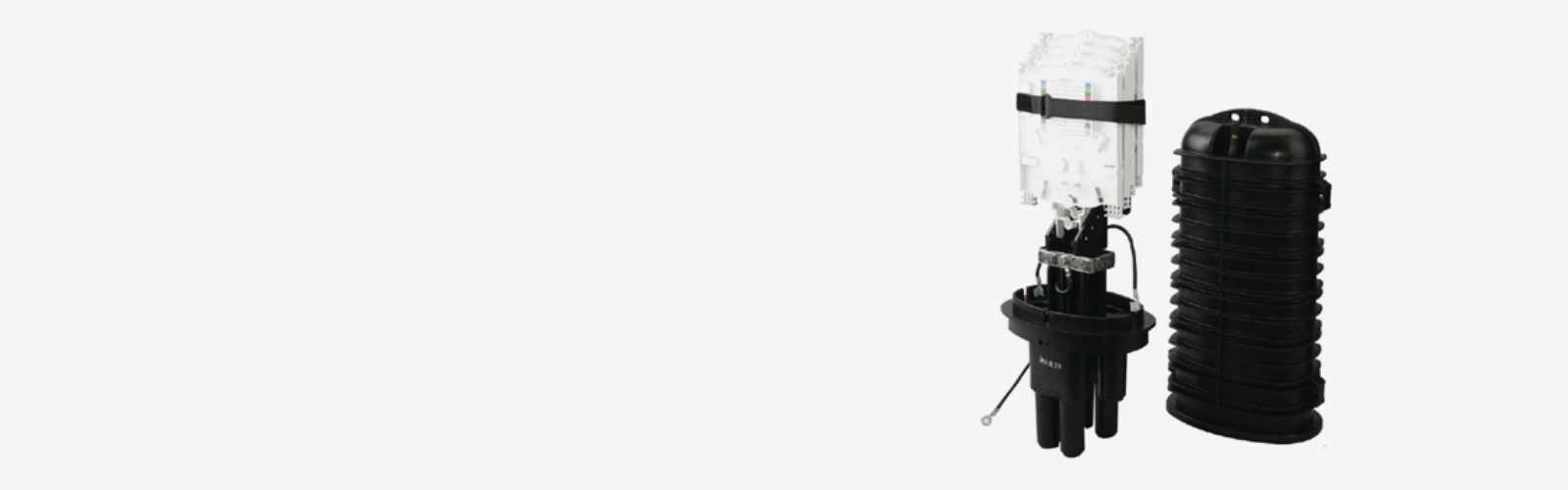

Optical connection box (dome type)
It is a device that protects and manages the connection part or connection point of an optical fiber network with a hemispherical (dome type) shaped connection box. Its main function is to safely protect the connection part after the connection work of an optical fiber cable and to prevent it from being affected by the external environment.
Optical Network&EquipmentOptical connection box

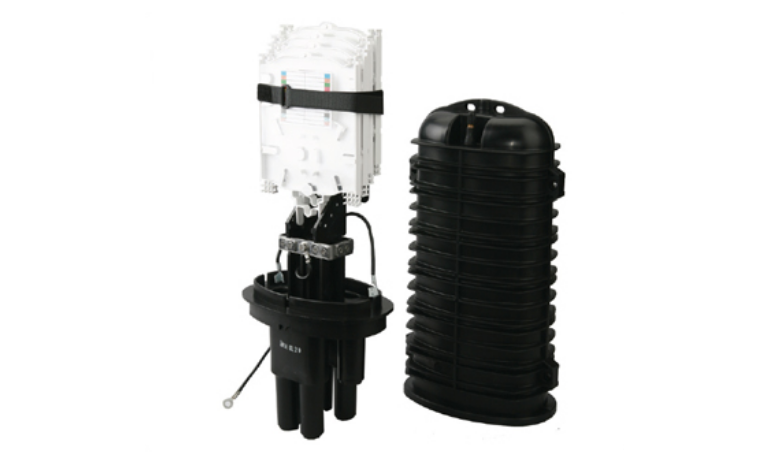

Optical Splice Closure (Dome Type)
- Product Information
- Specifications
- Order Information
-
Features
- Excellent waterproof and dustproof performance.
- Excellent durability and environmental resistance.
- Flexible installation and maintenance.
- Support for large cable capacity.
- Efficient optical fiber management.
- Stable mechanical structure.
- Compliant with standard specifications.
-
Application Area
- FTTH and FTTx networks
- Long-distancel fiber optic networks
- Industrial and special environments
Specifications
| Parameter | Value | |
|---|---|---|
| FOSC-A | FOSC-V | |
| Size(mm) | 530 x 160 x 180 | 577 x 211 x 174 |
| Weight(kg) | 4.0 | 2.5 |
| Inlet Port | 8 (Oval.1) | 6 (Oval.2) |
| Cable Dia.(mm) | Ø4 ~ Ø10 | Ø8 ~ Ø24 |
| No. of Tray | 4 | 4 |
| Tray Capacity | 24C (Max. 48C) | 24C (Max. 48C) |
| Splicing Capacity | 96C (Max. 192C) | 96C (Max. 192C) |
| Splicing Mathod | Fusion, Mechanical | Fusion, Mechanical |
| Splicing Protector | Heat Shrinkable Sleeve, Mechanical Splice | Heat Shrinkable Sleeve, Mechanical Splice |
| Tension Member | Galvanized Steel wire, FRP wire | Galvanized Steel wire, FRP wire |
Order Information
FOSC
Fiber Optical Splice Closure
Closure Type
- F:LINE
- A:DOME
- V:DOME
Size
- S:Small
- M:Middle
- L:Large
Fiber
- L:Loose
Tube Fiber - R:Ribbon
Fiber - S:Splitter
Fiber Count
- 12~288
