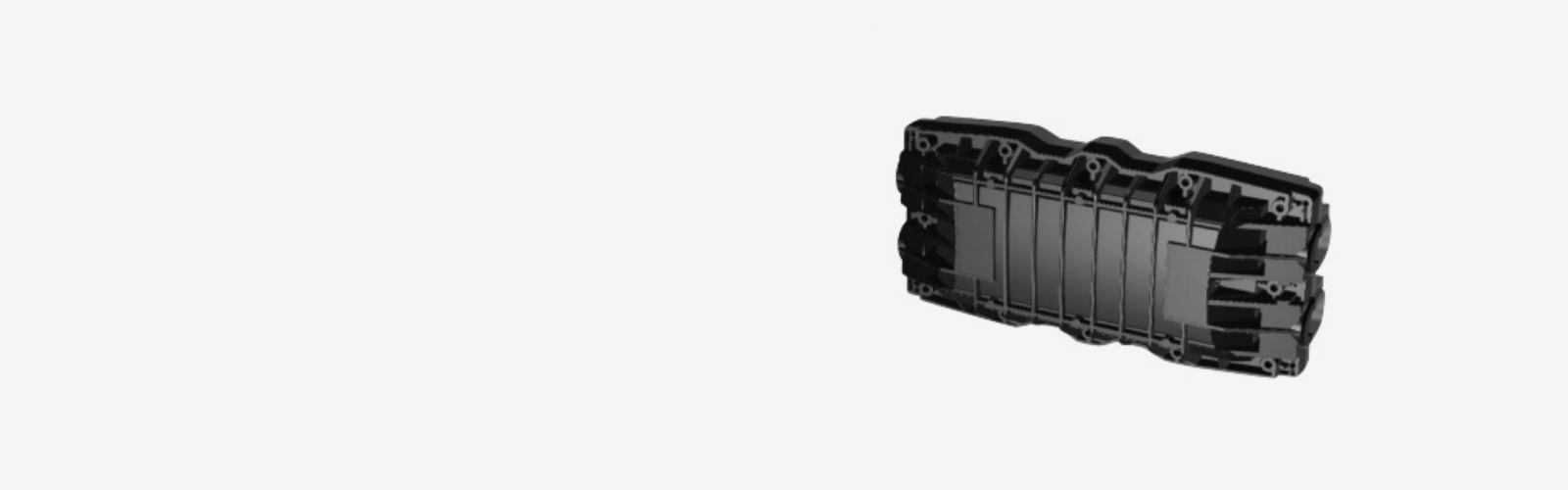

Optical connection box (line type)
A device that safely protects and manages the connection of optical fiber cables in a fiber network. It is designed in a line shape and is mainly used in line-type installations. This type of connection box is arranged in the line direction of the cable, and functions to linearly connect and protect multiple optical fiber cables. It is generally used in cable networks installed underground or above ground.
Optical Network&EquipmentOptical connection box

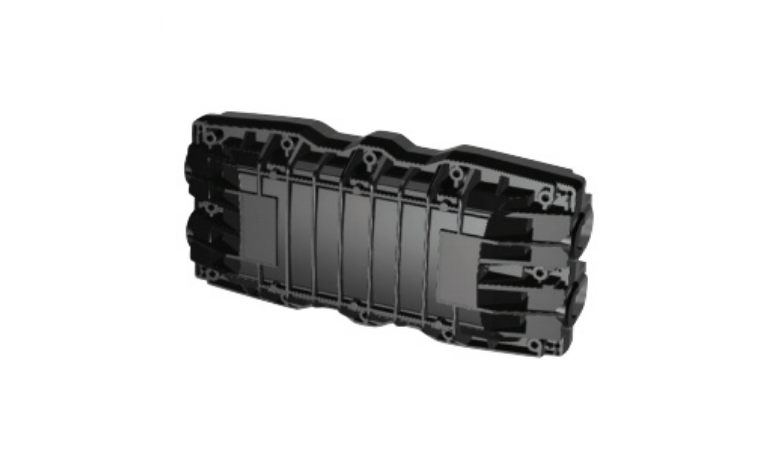

Optical Splice Closure (Line Type)
- Product Information
- Specifications
- Order Information
-
Features
- Efficient fiber optic connection and branching.
- Advanced waterproof and dustproof performance.
- Suitable for various installation environments.
- High capacity and reliability.
- Durability and environmental resistance.
- Efficient management and maintenance.
- High reliability and stability.
-
Application Area
- FTTH and FTTx networks
- Long-distancel fiber optic networks
- Industrial and special environments
Specifications
| Parameter | Value |
|---|---|
| Size(LxWxH) | 530 x 160 x 180 |
| Weight(kg) | 2.8 |
| Inlet Port | 4 |
| Cable Dia.(mm) | Ø3 ~ Ø20 |
| No. of Tray | 4 |
| Tray Capacity | 24C (Max. 48C) |
| Splicing Capacity | 96C (Max. 192C) |
| Splicing Mathod | Fusion, Mechanical, Connector |
| Splicing Protector | Heat Shrinkable Sleeve, Mechanical Splice |
| Tension Member | Galvanized Steel wire, FRP |
