Detachable Soltuion

Detachable optical interface for silicon photonics with micro-optics and magnetic alignment. Designed for high-density optical interconnects and next-generation co-packaged optics applications.

  • Product Information
  • Specifications
  • Order Information
  • Related Products

Download Resources

  • Features

    • Optical Channel#: 12–32 ch
    • Fiber Type: Single-mode / Multi-mode
    • Insertion Loss: ≤ 1.0 dB class
    • Repeatability: Excellent repeated mating performance
    • Optics / Alignment: Passive alignment with planar coupling geometry
    • Applications: Silicon photonics and co-packaged optics

  • Application Area

Specifications

Parameter Unit Specifications Remarks
Number of Channel Port ~1530(10 layers) Available for customization and multi layers
Materials   Silicon, Pyrex(Py ), Qz Available for customization
Insertion Loss dB < 0.5 Available for customization
Return Loss dB > 50 @Angle Polished.
Core Pitch / Error um 127~250 / 0.5(Si), 0.7(Py, Qz) Available for customization ( Machine shop in house)
Polishing Angle deg. Standard:0, 8, 12 ( 0.3) Available Customization
Connector Type   LC, SC, FC Available Customization
Operating Temp. ℃ -10 ~ +70
Storage Temp. ℃ -40 ~ +85

Order Information (Detachable Soltuion)

  • Edge Coupling

    Read More

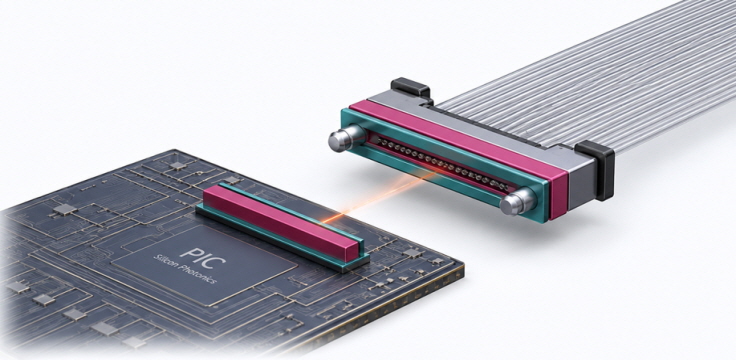

    Edge Coupling

    Detachable optical interface for silicon photonics with micro-optics and magnetic alignment. Designed for high-density optical interconnects and next-generation co-packaged optics applications.

  • Vertical Coupling

    Read More

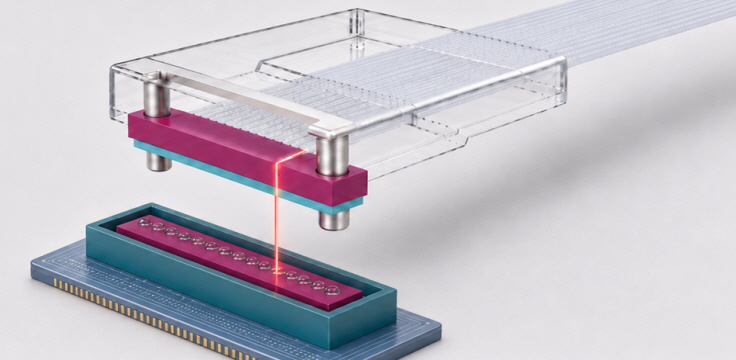

    Vertical Coupling

    Light from a fiber ribbon is redirected by a 45° mirror at the V-groove edge and bent by 90° downward into the silicon photonic chip. This low–loss, passive alignment interface enables reliable coupling for silicon photonics and co-packaged optics.

  • Planar Coupling

    Read More

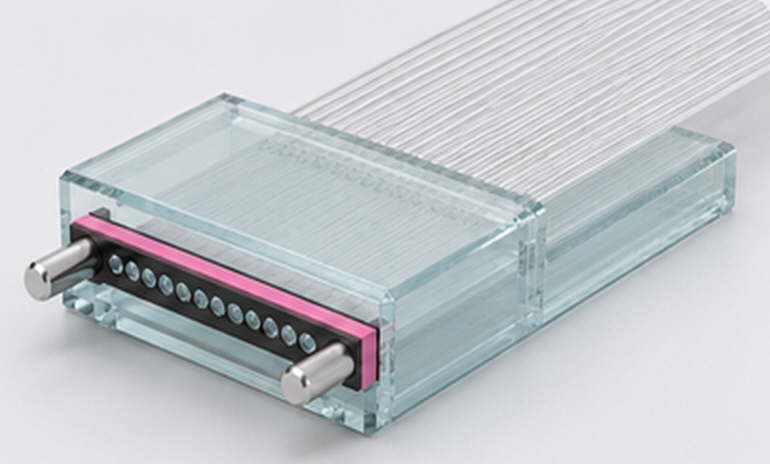

    Planar Coupling

    Compact detachable FAH interface for silicon photonics. Planar separation with passive self-aligned optics enables low-loss, repeatable interconnects. Detachable fiber connectivity supports post-reflow assembly for co-packaged optics and advanced optical I/O.
