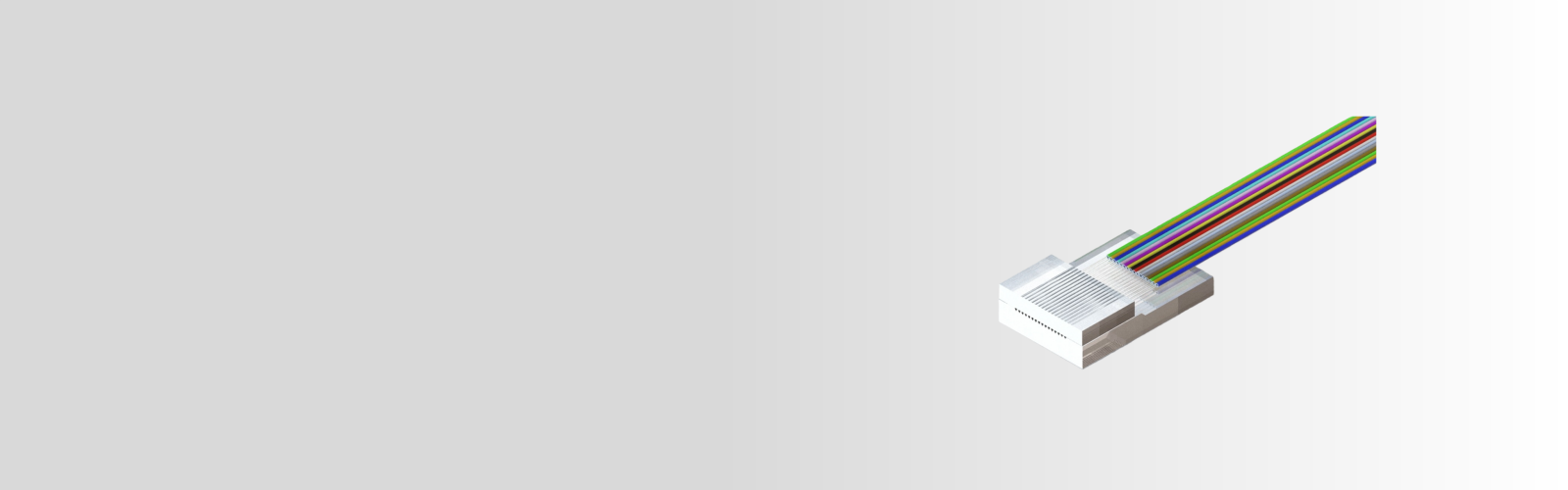

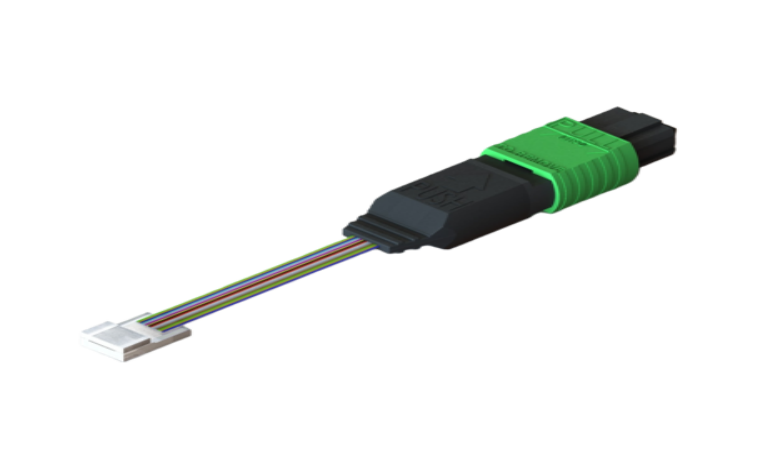

Fiber Array assembly
Fiber Array is used in high-density optical devices such as optical communication modules, optical switches, optical splitters, and optical waveguides by aligning multiple optical fibers at regular intervals. It is used to mechanically fix optical fibers and facilitate their alignment and coupling with other optical elements.
Data Center SolutionsFIBER ARRAY
FIBER ARRAY(Silicon Photonics)
- Product Information
- Specifications
- Order Information
-
Features
- Various spacing optical fiber arrays are available (127um, 165um, 250um)
- Polarization-maintaining optical fiber (PM) can be applied
- High reliability and low loss guaranteed
-
Application Area
- Data Center
- Supercomputer
- High-speed network and communication infrastructure
- AI, IoT, Data Cloud, etc.
Specifications
| Parameter | Unit | Specifications | Remarks |
|---|---|---|---|
| Number of Channel | Port | ~1530(10 layers) | Available for customization and multi layers |
| Materials | Silicon, Pyrex(Py ), Qz | Available for customization | |
| Insertion Loss | dB | < 0.5 | Available for customization |
| Return Loss | dB | > 50 | @Angle Polished. |
| Core Pitch / Error | um | 127~250 / 0.5(Si), 0.7(Py, Qz) | Available for customization ( Machine shop in house) |
| Polishing Angle | deg. | Standard:0, 8, 12 ( 0.3) | Available Customization |
| Connector Type | LC, SC, FC | Available Customization | |
| Operating Temp. | ℃ | -10 ~ +70 | |
| Storage Temp. | ℃ | -40 ~ +85 |
Order Information (Fiber Array assembly)
Preparing
