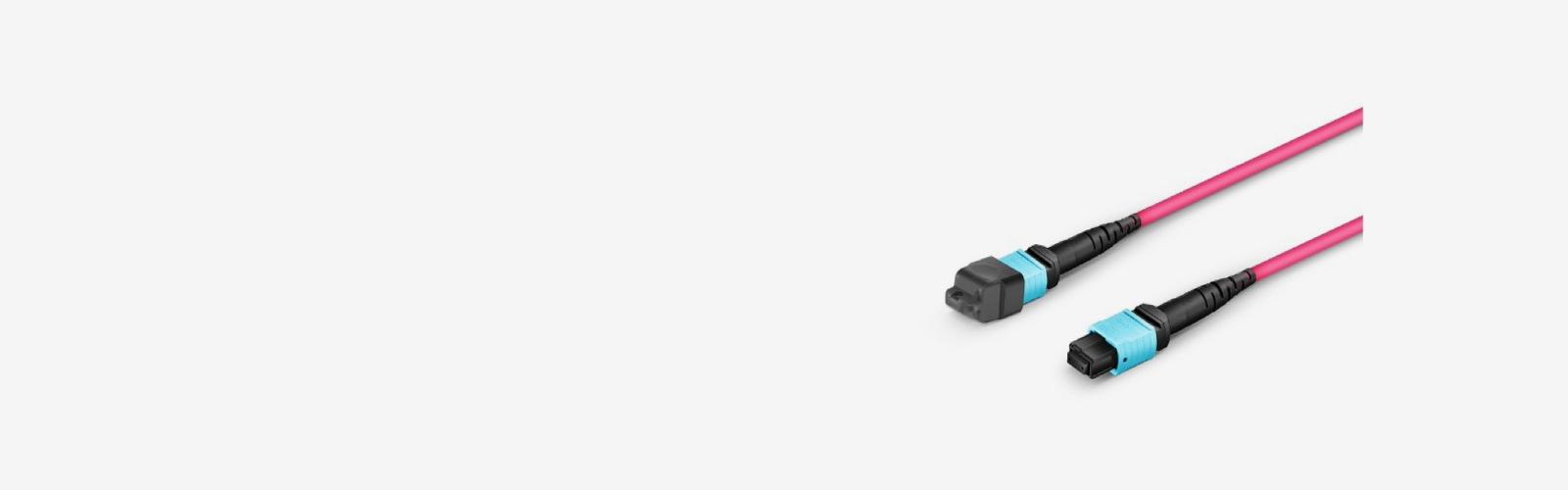

Optical patch code
This is a cable used to transmit optical signals in a communication network using optical fiber. It is mainly used to connect data centers, communication rooms, and network equipment, and plays a role in transmitting signals between optical transceivers and FDFs.
Optical patch code

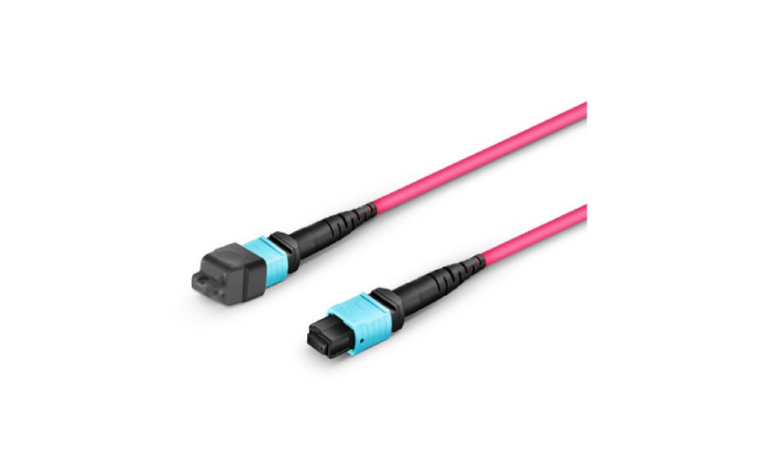

Optical Fiber Patch Cord
- Product Information
- Specifications
- Order Information
-
Features
- Compliant with IEC, JIS, TIC, etc. standards
- Fast and stable high-speed data transmission
- High durability and excellent environmental reliability, low loss
- Lightweight and flexible design for narrow and complex environments
- Customized product manufacturing (raw materials, product length, etc.)
-
Application Area
- Data Centers
- Communication Networks
- Enterprise and Industrial Networks
- Military and Defense
- Medical
Specifications
| Characteristics | Conditions | Value |
|---|---|---|
| Insertion Loss | Against Reference connector | <0.2dB |
| Return Loss | SPC | >40dB |
| UPC | >50dB | |
| APC | >60dB | |
| Durability | 1000matings | <0.2dB |
| Temperature Cycling | -40 ~ +80℃ (42 cycles) | <0.2dB |
| Humidity Cycling | 75℃, 95%/336hr | <0.2dB |
| Vibration | 10 ~ 55Hz(2Hr) | <0.2dB |
| Flex Test | 0˚→90˚→0˚→90˚, 5kgf(100cycles) | <0.2dB |
| Twist Test | ø0.9㎜ : 0.75kgf, ø2.0㎜ : 1.53kgf | <0.2dB |
| Straight Pull Test | 100N Load | <0.2dB |
| Impact | 1.5m drop, 8tlmes | <0.2dB |
Spec of Fiber
| Items | Units | Specification | |
|---|---|---|---|
| Attenuation | 1310nm | dB/km | ≤0.50 |
| 1490nm* | ≤1310nm measured value | ||
| 1550nm | ≤0.50 | ||
| Chromatic Dispersion | 1285-1330nm | ps/nm.㎞ | ≤3.5 |
| 1550nm | ≤18 | ||
Order Information (Optical patch code)
| OPC (Optical Patch Cord) | |
| Fiber Type | G.652 [9/125] G.657 G.655 [9/125] OM1 [62/125] OM2 [50/125] OM3 OM4 [50/125] PM (Polarization Maintaining) |
|---|---|
|
Connector Type Side A |
SC, FC, ST LC, MU MTRJ, MPO E2000, LX, 5 ESCON, SMA Other |
| Polishing Type | PC SPC UPC APC |
| Connector Type Side B |
SC, FC, ST LC, MU MTRJ, MPO E2000, LX, 5 ESCON, SMA Other |
| Polishing Type | PC SPC UPC APC |
| Cable Length [m] |
1~999 |
| Cable Type | SP=Simplex DP=Duplex (Zip cord) R=Duplex (Round cord) Other |
| Cable Diameter | ø0.9 ø2.0 ø2.4 ø3.0 ø5.5 Other |
