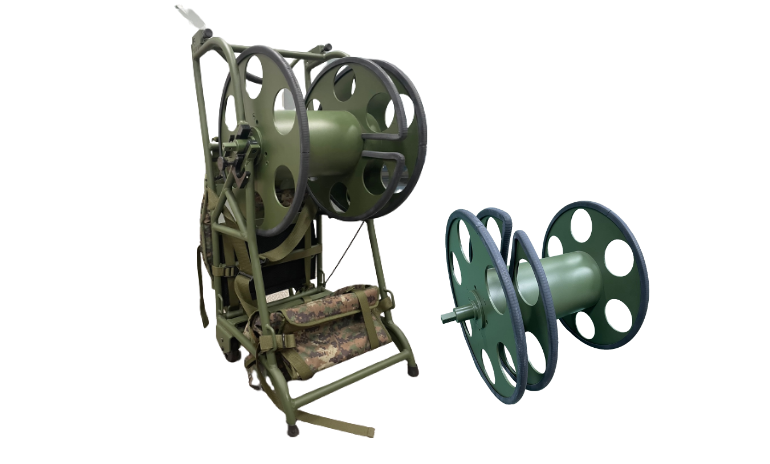

Backpack Style Cable Reel
A backpacking cable reel that can be carried on the back, ergonomically designed to reduce the burden on users and facilitate tactical communication network configuration.
Backpack Style Cable Reel
Backpack Cable Reel
- Product Information
- Specifications
- Order Information
-
Features
- Backpack-style cable reel.
- Integrated and detachable structure options.
- Suitable for medium and long distance repetitive operation.
- Ergonomic structure reduces user burden.
-
Application Area
- Defense Industry
- Outdoor performances, events, exhibitions, etc. Broadcasting Industry
- Building tactical communications networks
Specifications
| MOFC-B-C(Reel with Backpack) | |||||||
|---|---|---|---|---|---|---|---|
| Code | MOFC-B-C(Reel with Backpack) | ||||||
| Size(mm) | 360 x 450 x 800 | ||||||
| Material | Steel & Aluminum | ||||||
| Weight(kg) | 5.4 | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 1050 | 680 | 480 | 360 | 320 | 180 | 75 |
| ST8200-B | |||||||
|---|---|---|---|---|---|---|---|
| Code | ST8200-B | ||||||
| Size(mm) | 375 x 465 x 420 | ||||||
| Material | Steel | ||||||
| Weight(kg) | - | ||||||
| Cable O.D(mm) | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.0 | 16.0 |
| Capacity(M) | 495 | 320 | 230 | 165 | 130 | 90 | 35 |
Order Information (Backpack Style Cable Reel)
Preparing
-
Read More

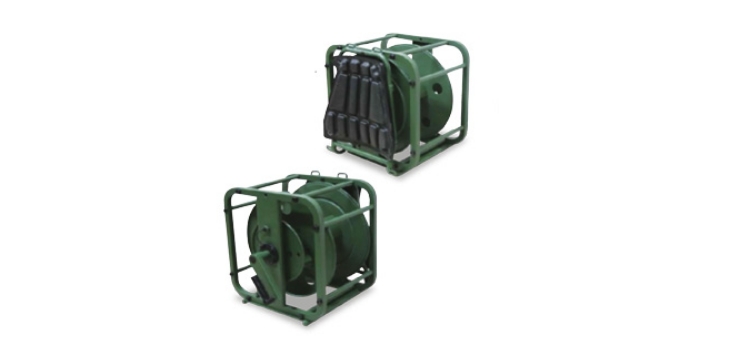

Cable Reel(ST8200-B)
Cable Reel(ST8200-B)
The ergonomically designed backrest minimizes user fatigue and is lightly made of aluminum to relieve the burden on the body. It can also be used as a backpack type as a prefabricated backrest, and is easy to store by loading and storing cable reels if necessary.
-
Read More

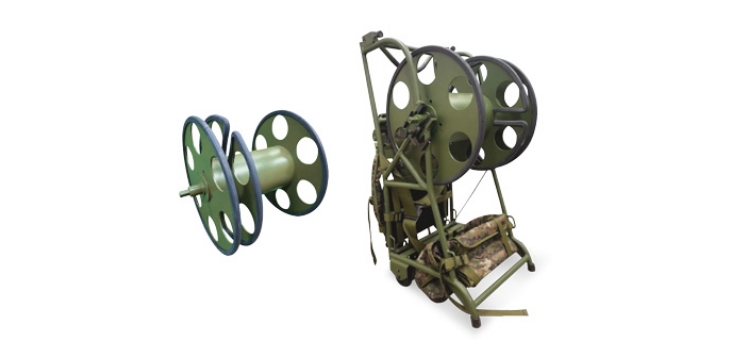

MOFC-B-C
MOFC-B-C
MOFC-B-C is prefabricated cable reel that can be assembled with a backpack which is ergonomically designed to reduce the burden on users, and allows tactical movement and rapid cable winding operation.
