Optical Power Meter
A basic optical communications instrument used to measure the intensity of light transmitted through optical fiber. It is an essential equipment for evaluating the performance of optical communication systems and troubleshooting problems. It precisely measures the output power of the optical signal transmitted from the transmitter to the receiver.
- Product Information
- Specifications
- Order Information
-
Features
- Accurate optical signal measurement.
- Support for various wavelengths.
- Convenience in the field and laboratory.
- Compatibility with various connectors.
- Cost-effectiveness and ease of maintenance.
-
Application Area
- Telecommunications networks
- Data centers
- Defense and aerospace
- Rail and transport networks
Specifications
| Type | FOPM002 |
|---|---|
| WaveLength Range | 800~1700 |
| Measurable Wavelength | 850, 1300, 1310, 1550nm |
| Detector Type | InGaAs |
| Measurement Range | -70~+6 / -50~+26 |
| Uncertainty | ±0.25dB |
| Accuracy | Linear 0.1% or Nonlinear 0.01dBm |
| Connector | FC/PC or FC,SC interchangeable |
| Operating Temperature | -10~+60 |
| Storage Temperature | -25~+70 |
| Auto-off Time(min) | 10 |
| Operating Time(h) | ≥200 |
| Bettery | 3 AA1.5V |
| Weight | 285 |
| Dimensions | 200x90x50 |
Order Information (Optical Power Meter)
Preparing
-
Read More

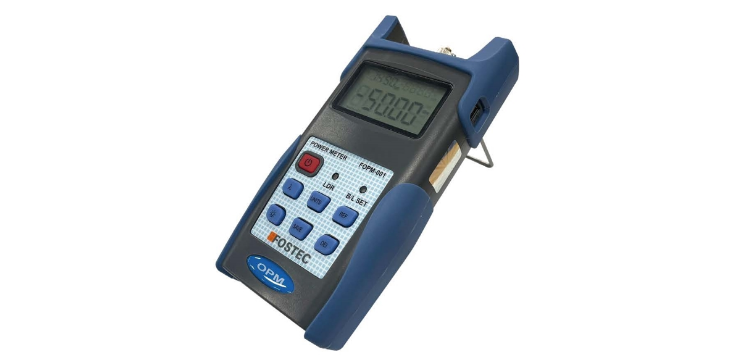

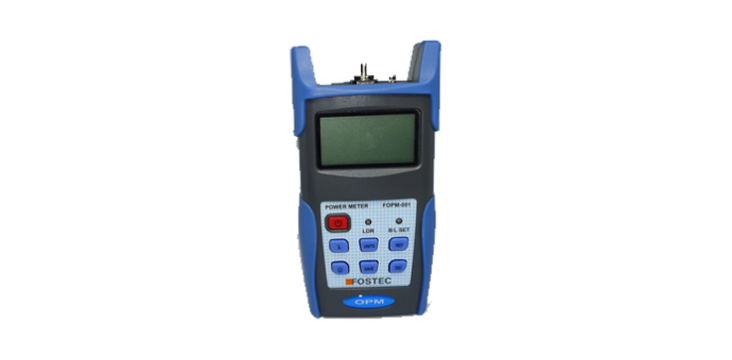

FOPM-001
FOPM-001
A portable optical power meter that can be used in the field measures the light output from a light source and expresses it as a value (dB).
-
Read More
FOPM-002
FOPM-002
A portable optical power meter that can be used in the field measures the light output from a light source and expresses it as a value (dB).
-
Read More
FOBEX-MP
FOBEX-MP
This is a measuring device that examines the output values of optical signals and electrical signals, and is capable of measuring both optical and electrical signals simultaneously.
