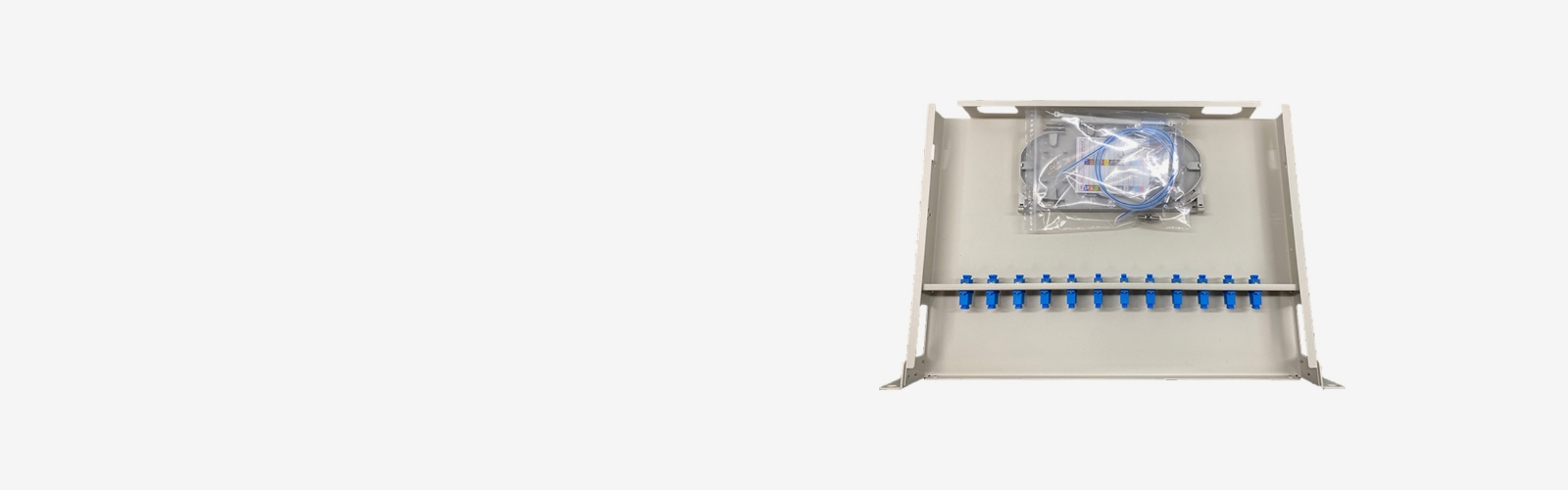

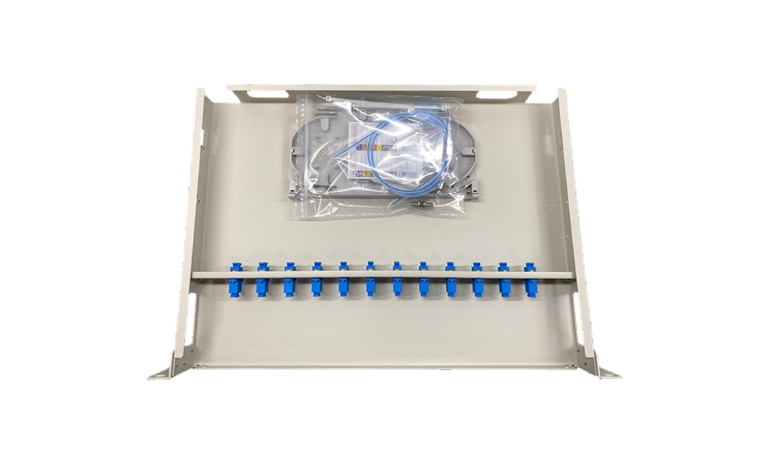

Optical Distribution Box (FDF)
Equipment used to efficiently distribute, connect, and manage fiber optic cables in fiber optic networks. It is mainly used in data centers, telecommunications networks, large offices, or other high-speed communication networks. This equipment divides fiber into multiple paths and supports connection and separation between fiber optic cables, facilitating flexibility, scalability, and management of the network.
Optical Network&EquipmentFDF
Fiber Distribution Frame
- Product Information
- Specifications
- Order Information
-
Features
- Support for high-performance optical networks.
- Low loss, multi-distribution capability.
- Flexible design options.
- Easy installation and maintenance.
- Efficient optical cable management.
-
Application Area
- Telecommunications network
- Local area network (LAN)
- Data system network
- CATV telecommunications network
Specifications
| Parameter | Unit | FDF-1U | FDF-2U | FDF-3U | FDF-4U | FDF-WALL | |
|---|---|---|---|---|---|---|---|
| Fiber Capacity | Core | ≤24 | ≤48 | ≤72 | ≤96 | ≤24 (Max 72) | |
| Number of Tray | PCS | 1 | 2 | 3 | 4 | 2 | |
| Dimension | Height | 1U | 2U | 3U | 4U | 305mm | |
| Width | mm | 482 | 482 | 482 | 482 | 305 | |
| Depth | mm | 305 | 305 | 305 | 305 | 95 | |
| Remark | Rack Mount | Wall Mount | |||||
Order Information (Optical Distribution Box (FDF))
| FDF (Fiber Distribution Frame) | |
| Type | R : Rack Mount W : Wall Mount |
| Core | 1~72 |
| Adapter Type | SC, FC, ST LC, MTRJ Other |
| Sleeve Type | Zr : Zirconia Ceramic FB : Phosphorous Bronze |
