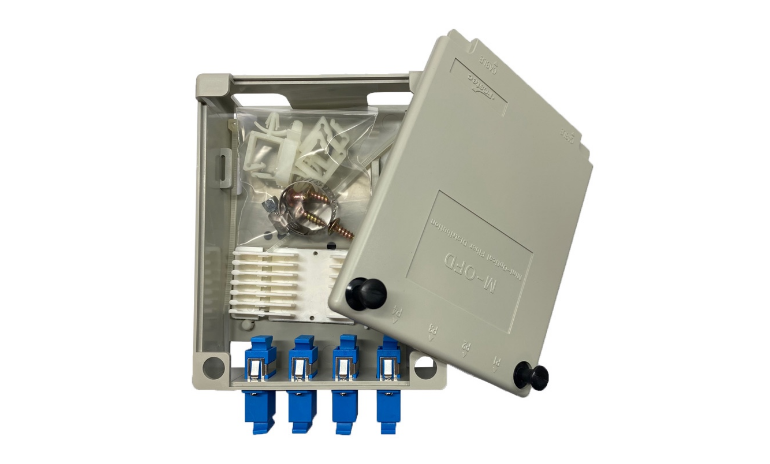

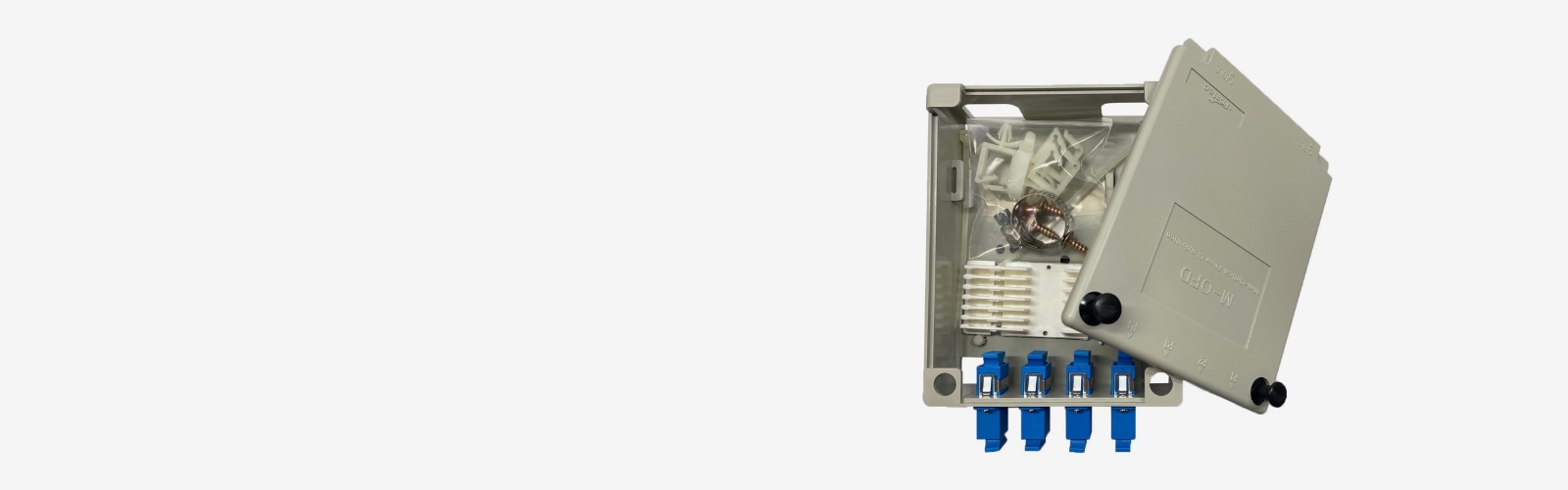

Optical distribution box (MINI)
Mini type optical distribution box, with options of iron or ABS (plastic) specifications. Mainly used for distribution of small number of optical fibers such as 4, 8, 12 cores.
Optical Network&EquipmentMINI
Optical Fiber Distribution (mini)
- Product Information
- Specifications
- Order Information
-
Features
- Efficient use of space with compact design.
- Light weight, easy to transport and install.
-
Application Area
- Telecommunications network
- Local area network (LAN)
- Data system network
- CATV telecommunications network
Specifications
| Parameter | Unit | MOFD | MODP | |||
|---|---|---|---|---|---|---|
| Fiber Capacity | Core | 4 | 8 | 4.8 | 12 | |
| Dimension | Height | mm | 38 | 40 | 30 | 35 |
| Width | mm | 95 | 145 | 110 | 140 | |
| Depth | mm | 120 | 175 | 135 | 190 | |
| Material | ABS | ABS | Steel | Steel | ||
Order Information (Optical distribution box (MINI))
| M (Mini Optical Fiber Distribution) | |
| Type | OFD ODP BOX-2 BOX-4 BOX-DP |
| Core | 1~12 |
| Adapter Type | SC, FC, ST, LC Other |
| Sleeve Type | Zr : Zirconia Ceramic FB : Phosphorous Bronze |
