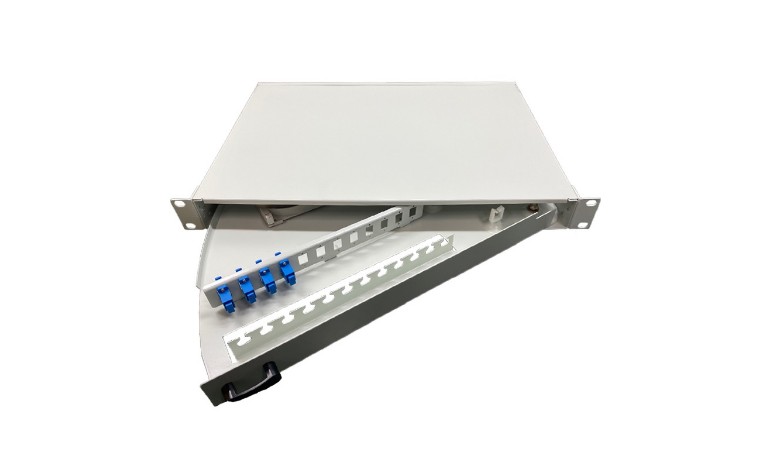

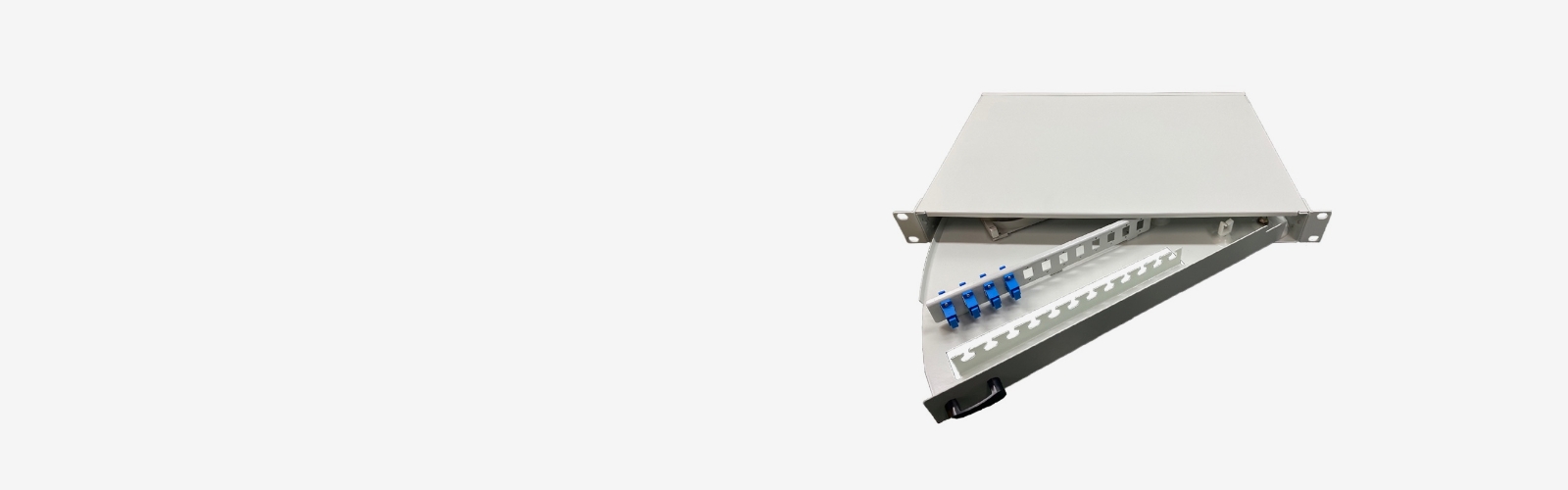

Optical Distribution Box (OFD)
Equipment used to efficiently distribute, connect, and manage fiber optic cables in fiber optic networks. It is mainly used in data centers, telecommunications networks, large offices, or other high-speed communication networks. This equipment divides fiber into multiple paths and supports connection and separation between fiber optic cables, facilitating flexibility, scalability, and management of the network.
Optical Network&EquipmentOFD
Optical Fiber Distribution
- Product Information
- Specifications
- Order Information
-
Features
- Low excess loss and high performance.
- Foldable trays.
- Easy handling.
- Rack system standards compliant.
-
Application Area
- Telecommunications network
- Local area network (LAN)
- Data system network
- CATV telecommunications network
Specifications
| Parameter | Unit | OFD-1 | OFD-2 | OFD-3 | OFD-4 | OFD-5 | OFD-6 | |
|---|---|---|---|---|---|---|---|---|
| Fiber Capacity | Core | ≤24 | ≤24 | ≤24 | ≤48 | ≤144 | ≤288 | |
| Number of Tray | PCS | 1 | 1 | 1 or 2 | 2 | 5 | 12 | |
| Dimension | Height | 1U | 1U | 3U | 5U | 5U | 9U | |
| Width | mm | 482 | 482 | 482 | 482 | 482 | 482 | |
| Depth | mm | 305 | 305 | 305 | 305 | 305 | 305 | |
| Remark | Round | Draw | Round | Panel | Panel | Panel | ||
Order Information (Optical Distribution Box (OFD))
| OFD (Optical Fiber Distribution) | |
| Fiber Type | SM (Single-Mode) MM (Multi-Mode) |
| Core | 1~288 |
| Adapter Type | SC, FC, ST LC, MU Other |
| Sleeve Type | Zr : Zirconia Ceramic FB : Phosphorous Bronze |
