ODC
A high-performance connector that provides fiber optic connections in harsh environments, it is mainly used for communication infrastructure, military, marine, and industrial applications. In particular, it is durable and is designed to be used in harsh environments.
Contact ConnectorsODC

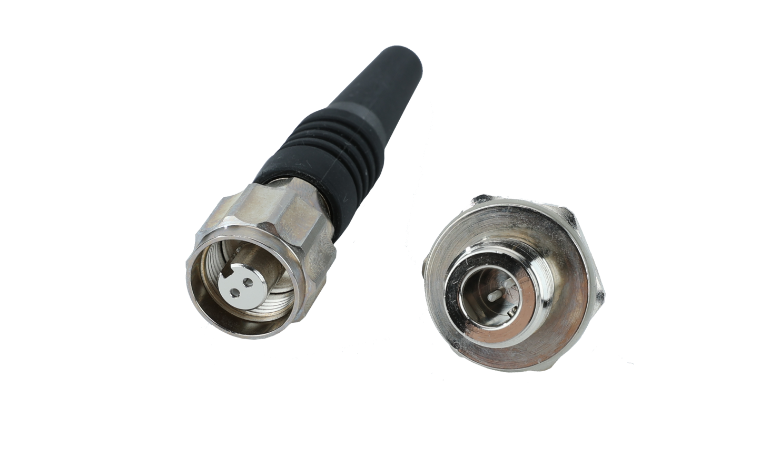

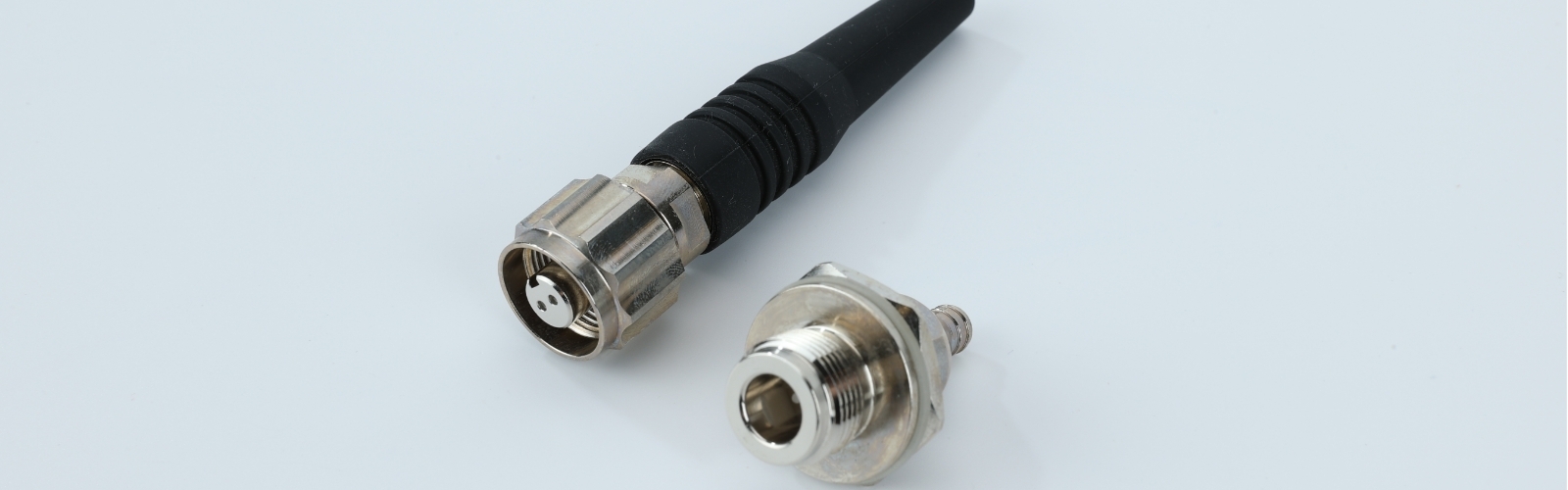

ODC connector PLUG/SOCKET and ODC cable assembly
- Product Information
- Specifications
- Order Information
-
Features
- Optical connector for field environments.
- 2-channel and 4-channel options available.
- High-strength connection with screw-type coupling.
- Low insertion loss and high environmental reliability.
-
Application Area
- Defense Industry
- Optical Communication Networks
Specifications
| ODC | ||
|---|---|---|
| Optics | Insertion Loss : SM 0.5dB | Insertion Loss : MM 0.4dB |
| Return Loss : ≥50dB | ||
| Machine | Temperature Environment : -40℃ ~ +85℃ | |
| Waterproof Characteristics : IP67 or IP68 | ||
Order Information (ODC)
| FOSTEC ODC CONNECTOR | |
| A: CONNECTOR TYPE A | P - PLUG |
| BD - BULKHEAD D-HOLE | |
| B: NUMBER OF FIBER | 2 - 2 OPTICAL CHANNEL |
| C: FIBER TYPE | 09 - SINGLE MODE(9/125) |
| 62 - MULTI MODE OM1(62.5/125) | |
| 52 - MULTI MODE OM2(50/125) | |
| 53 - MULTI MODE OM3(50/125) | |
| 54 - MULTI MODE OM4(50/125) | |
| D: WAVELENGTH | A - 850/1300nm |
| B - 1310/1550nm | |
| C - 850nm ONLY | |
| D - 1300nm ONLY | |
| E - 1310nm ONLY | |
| F - 1550nm ONLY | |
| E: CABLE DIAMETER | Ø2.0 - 2.0MM |
| Ø4.6 - 4.6MM | |
| Ø5.5 - 5.5MM | |
| F: CONNECTOR TYPE B | A - SAME AS CONNECTOR A |
| LC - LC TYPE CONNECTOR | |
| SC - SC TYPE CONNECTOR | |
| ST - ST TYPE CONNECTOR | |
| FC - FC TYPE CONNECTOR | |
| G: CABLE DIAMETER | 001 - 1M |
| 050 - 50M | |
| 100 - 100M | |
