- PTLC
PTLC

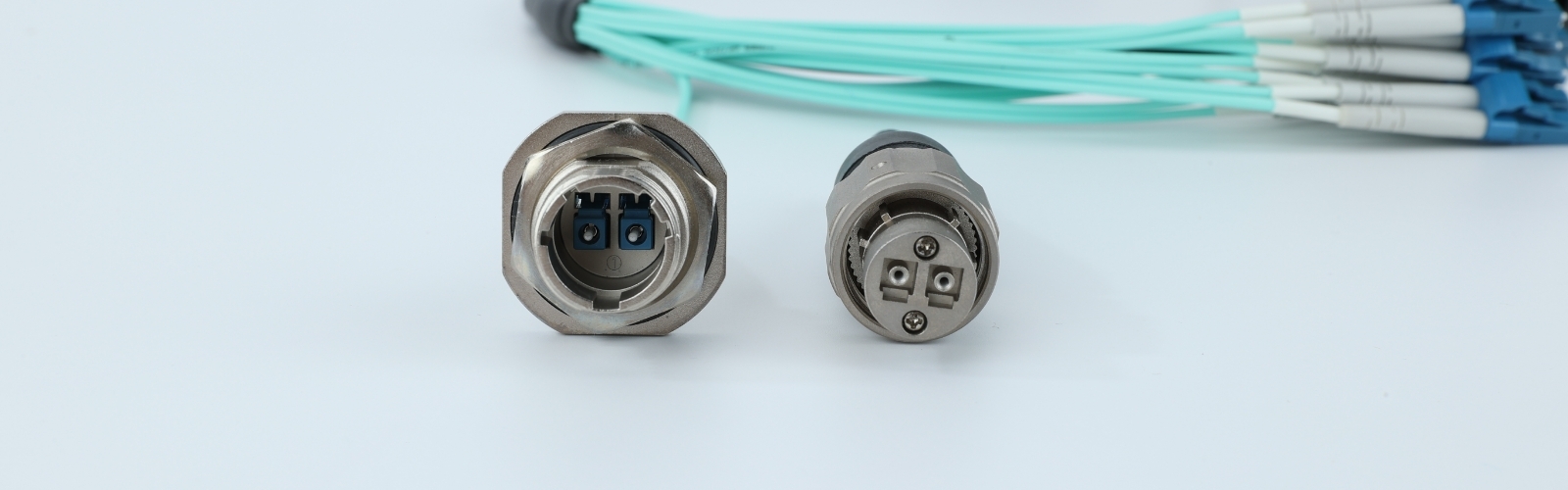

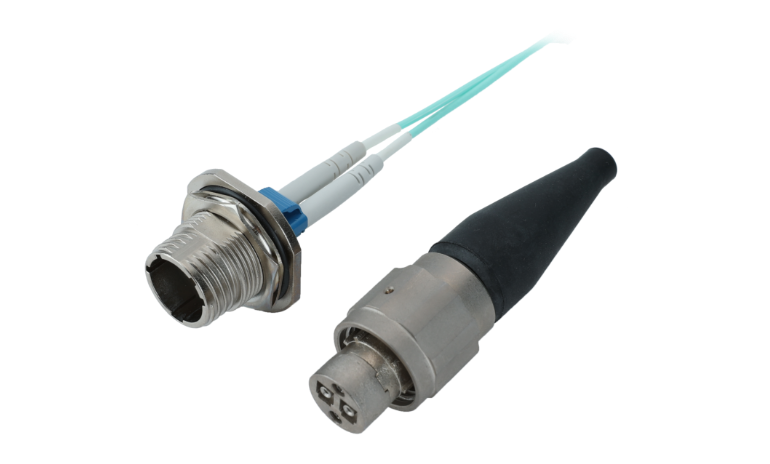

An outdoor connector which comes pre-loaded with LC connectors, providing a quick and easy installation solution.
Contact ConnectorsPTLC
PTLC Fiber Optic connectors
- Product Information
- Specifications
- Order Information
-
Features
- Provides high fiber density in a relatively small circular connector while maintaining the advantages of MIL-DTL-38999 Series III connectors.
- Provides precise interface between fibers with three-step alignment.
-
Application Area
- Defense and Aerospace
- Industrial Optical Networks
Specifications
| PTLC | ||
|---|---|---|
| Fiber types / Imsertion Loss | Single Mode : Max < 0.5 dB | Multi Mode : MAX < 0.5dB |
| Return Loss | - 55 dB | - 25 dB |
| Operating Temperature | -46℃to +71℃ | |
| Mating Durability | Bayonet type < < 50 cycles Threa ded type < 500 cycles | |
| Materials | Shell | BRASS & ZAMAK#3,QQ-2-363 E |
| Ferrule | Zirconia Ceramic | |
| Alignment Sleeve | Zirconia Ceramic | |
Order Information (PTLC)
| FOSTEC PT/LC CONNECTOR | |
| A: CONNECTOR TYPE A | P - PLUG |
| BD - BULKHEAD D-HOLE | |
| BDA - BOTH SIDE D-HOLE ADAPTER | |
| B: SHELL MATERIAL | W - OLIVE DRAB CADMIUM OVER ELECTROLESS |
| F - ALUMINUM SHELL, ELECTROLESS NICKEL FINISH | |
| C: NUMBER OF FIBER | 2 - 2 OPTICAL CHANNEL |
| D: FIBER TYPE | 09 - SINGLE MODE(9/125) |
| 62 - MULTI MODE OM1(62.5/125) | |
| 52 - MULTI MODE OM2(50/125) | |
| 53 - MULTI MODE OM3(50/125) | |
| 54 - MULTI MODE OM4(50/125) | |
| E: WAVELENGTH | A - 850/1300nm |
| B - 1310/1550nm | |
| C - 850nm ONLY | |
| D - 1300nm ONLY | |
| E - 1310nm ONLY | |
| F - 1550nm ONLY | |
| F: CABLE DIAMETER | Ø4.6 - 4.6MM |
| Ø5.5: 5.5MM | |
| G: CONNECTOR TYPE B | A - SAME AS CONNECTOR A |
| LC - LC TYPE CONNECTOR | |
| SC - SC TYPE CONNECTOR | |
| ST - ST TYPE CONNECTOR | |
| FC - FC TYPE CONNECTOR | |
| H: CABLE DIAMETER | 001 - 1M |
| 050 - 50M | |
| 100 - 100M | |
